Manufacturer package reference image
Gate driver IC
Key Specifications
| Complete manufacturer part number | 1ED3120MC12HXUMA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | Gate driver IC |
| Package / case | PG-DSO-8 |
| Product category | Gate driver ICs |
| Pins | 8 |
| Ambient operating temperature (TA) | -40 °C to 125 °C |
| Input-side operating supply voltage | 3.1 V to 15 V |
| Output-side operating supply voltage | 10 V to 35 V |
| In stock | Contact for availability |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
Complete ordering code and physical package are listed by the manufacturer. A product-family overview is distinct from exact-order electrical limits. Images are package references; actual lot appearance and top marking require confirmation. No certification is inferred from a suffix.

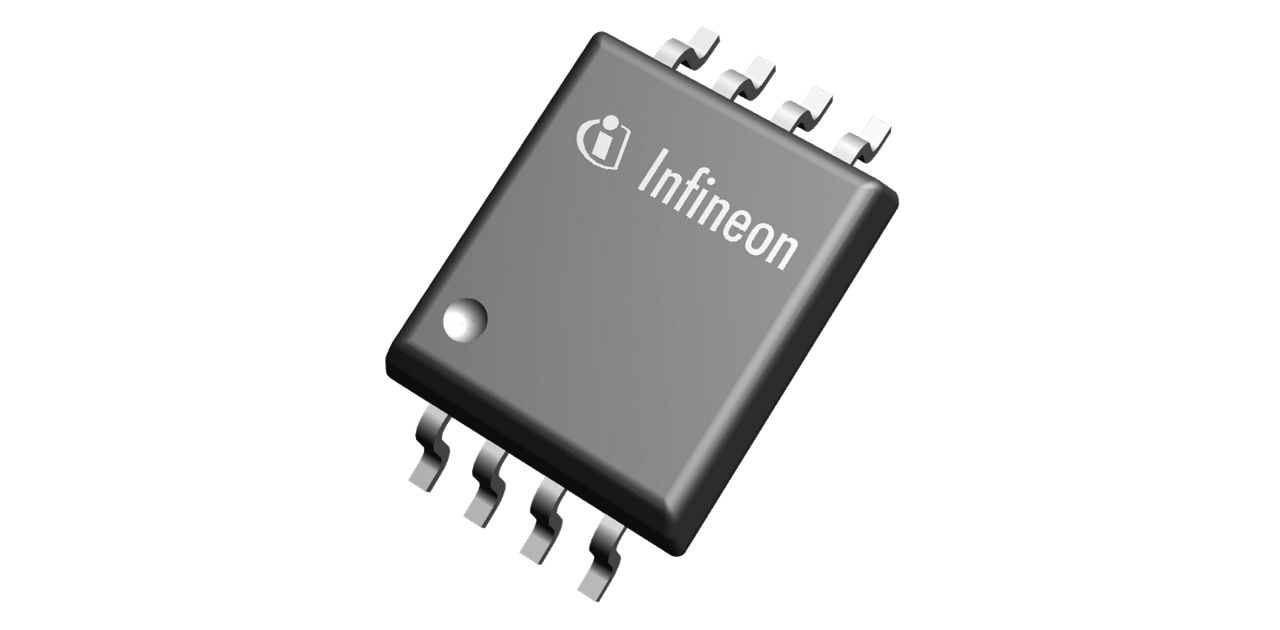

Manufacturer package reference image for PG-DSO-8. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
