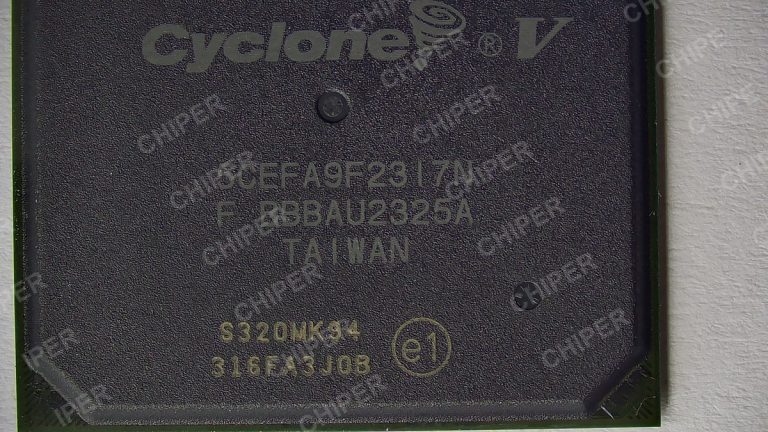

The Intel Cyclone V E 5CEFA9F23I7N is a high-capacity FPGA that integrates 301,000 logic elements with approximately 14.25 Mb of embedded memory in a 484-pin FBGA package. Running from a 1.1 V core supply at the industrial temperature range and -7 speed grade, it targets high-complexity, power-efficient designs that require substantial programmable logic and memory within a low-power architecture.
Key Specifications
| Manufacturer | Altera (Intel) |
| Manufacturer Part Number | 5CEFA9F23I7N |
| Product Category | FPGA – Field Programmable Gate Array |
| Package / Case | 484-FBGA (23 mm x 23 mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C to +100°C |
| Power Supply | Core (VCCINT) 1.1 V; I/O banks (VCCIO) 1.2 V to 3.3 V |
| Logic Elements | 301,000 |
| Embedded Memory | ~14.25 Mb |
| User I/O | 224 |
| Speed Grade | -7 |
| Lifecycle Status | Active |
| Official Documentation | View official documentation |
Key Features
- 301,000 logic elements
- ~14.25 Mb embedded memory
- Low 1.1 V core power
- Industrial temperature range
- 224 user I/O
- 28 nm low-power process
- Quartus Prime software support
- Mature, long-life platform
Applications
- High-complexity industrial systems
- Communications infrastructure
- Video and image processing
- High-performance embedded processing
- Data acquisition
Sourcing
Availability, lead time, date code and commercial terms are subject to confirmation at the time of quotation.
Quality
CHIPER sources brand-new, unused components and provides quality inspection, shortage and long lead-time sourcing, and one-stop BOM procurement. Every part is verified before shipment.
FAQ
What logic density does the 5CEFA9 provide?
The 5CEFA9 offers 301,000 logic elements, one of the largest Cyclone V E densities.
What core voltage does the Cyclone V E use?
The core operates at approximately 1.1 V, with I/O banks powered separately from 1.2 V to 3.3 V.
