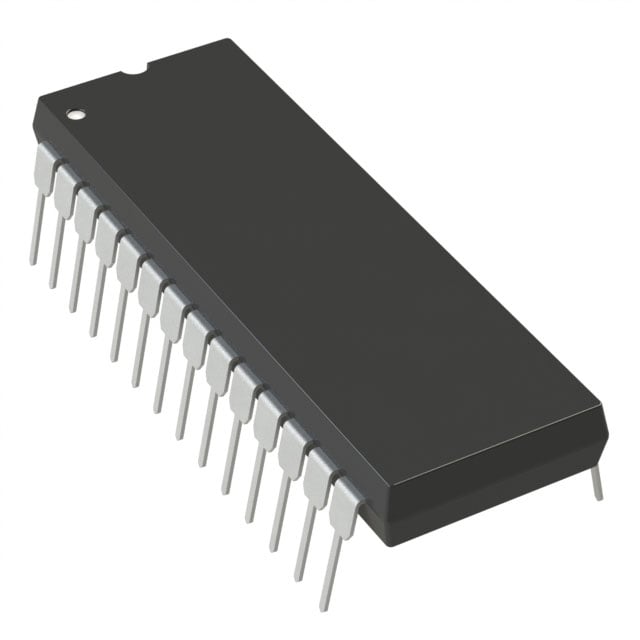

Listing photo. Request current-lot confirmation.
12-Bit, 100 kSPS, Complete ADC
Key Specifications
| Complete manufacturer part number | AD1674JNZ |
|---|---|
| Manufacturer | Analog Devices |
| Description | 12-Bit, 100 kSPS, Complete ADC |
| Package / case | 28-Lead PDIP |
| Product category | Analog-to-digital converters |
| Series / Family | AD1674 |
| Power supply | 5 V / ±12 V to ±15 V |
| Pins | 28 |
| Mounting Type | Surface Mount |
| Resolution | 12-bit |
| Channels | 1 |
| Sampling Rate | 100 ksps |
| Interface | Parallel / 8-bit or 16-bit |
| Reference | On-chip 10 V reference |
| Input | Bipolar ±5 V, ±10 V / unipolar 0-10 V, 0-20 V |
| Operating temperature (manufacturer ordering record) | 0 °C to 70 °C |
| In stock | 8,616 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Request a Quote
Part of the ADI Precision ADC series.
