Manufacturer package outline drawing - not a product photo
8-Channel, Low Noise, Low Power, 24-Bit, Sigma-Delta ADC with PGA and Reference
Key Specifications
| Complete manufacturer part number | AD7124-8BCPZ-RL |
|---|---|
| Manufacturer | Analog Devices |
| Description | 8-Channel, Low Noise, Low Power, 24-Bit, Sigma-Delta ADC with PGA and Reference |
| Package / case | 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) |
| Product category | Analog-to-digital converters |
| Series / Family | AD7124-8 |
| Power supply | 2.7 V to 3.6 V and ±1.8 V (AVDD); 1.65 V to 3.6 V (IOVDD) |
| Pins | 32 |
| Mounting Type | Surface Mount |
| Resolution | 24-bit |
| Channels | 8 differential / 15 pseudo-differential |
| Sampling Rate | 1.17 SPS to 19.2 kSPS |
| Interface | SPI / QSPI / MICROWIRE / DSP |
| Reference | Internal band gap or external |
| Input Type | Differential / pseudo-differential / single-ended |
| Programmable Gain | 1 to 128 |
| Operating temperature (manufacturer ordering record) | -40 °C to 125 °C |
| In stock | 2,500 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

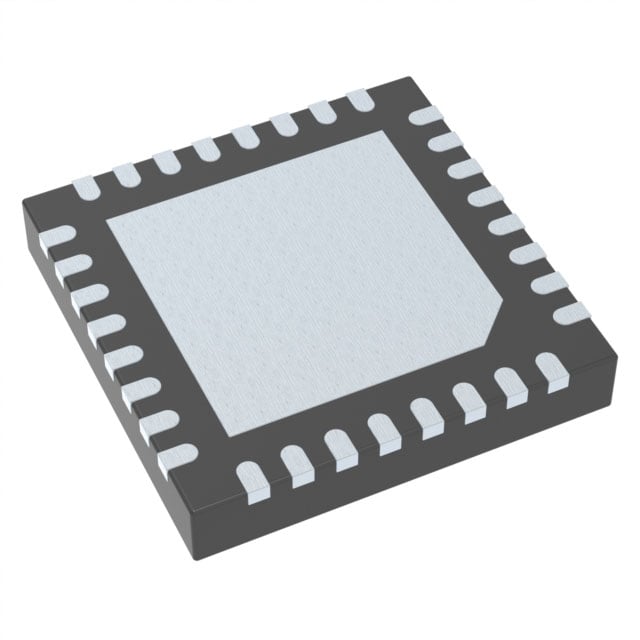

Manufacturer package outline drawing - not a product photo for 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Request a Quote
Part of the ADI Precision ADC series.
