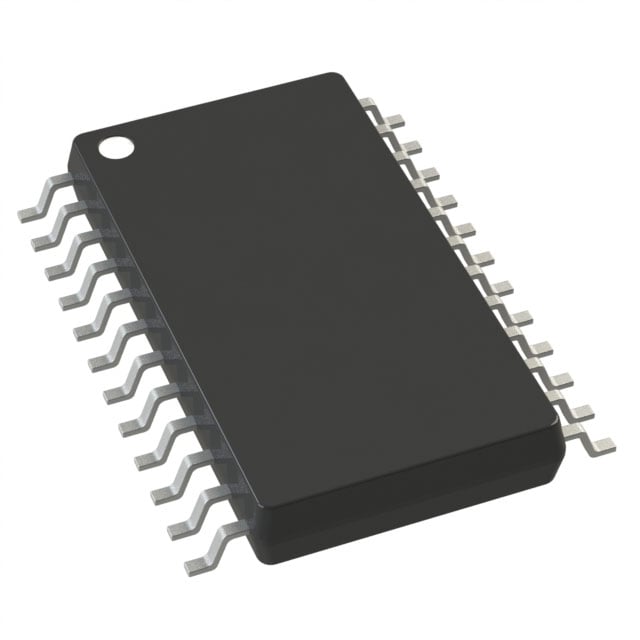

Manufacturer package outline drawing - not a product photo
4.8 kHz Ultralow Noise 24-Bit Sigma-Delta ADC with PGA
Key Specifications
| Complete manufacturer part number | AD7190BRUZ-REEL |
|---|---|
| Manufacturer | Analog Devices |
| Description | 4.8 kHz Ultralow Noise 24-Bit Sigma-Delta ADC with PGA |
| Package / case | 24-Lead TSSOP |
| Product category | Analog-to-digital converters |
| Series / Family | AD7190 |
| Power supply | AVDD 4.75 V to 5.25 V; DVDD 2.7 V to 5.25 V |
| Pins | 24 |
| Mounting Type | Surface Mount |
| Resolution | 24 bits |
| Channels | 2 differential / 4 pseudo-differential |
| Output Data Rate | 4.7 Hz to 4.8 kHz |
| Interface | 3-wire SPI / QSPI / MICROWIRE / DSP |
| Reference | External |
| Input Type | Differential / pseudo-differential |
| Programmable Gain | 1 to 128 |
| RMS Noise | 8.5 nV @ 4.7 Hz (G = 128) |
| Operating temperature (manufacturer ordering record) | -40 °C to 105 °C |
| In stock | 2,768 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Manufacturer package outline drawing - not a product photo for 24-Lead TSSOP. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Request a Quote
Part of the ADI Precision ADC series.
