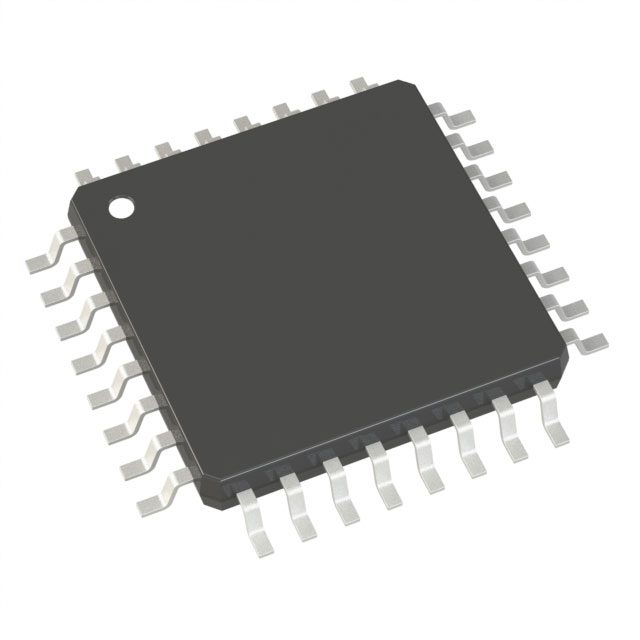

Listing photo. Request current-lot confirmation.
Differential/Single-Ended Input, Dual 2 MSPS, 12-Bit, 3-Channel SAR ADC
Key Specifications
| Complete manufacturer part number | AD7266BSUZ |
|---|---|
| Manufacturer | Analog Devices |
| Description | Differential/Single-Ended Input, Dual 2 MSPS, 12-Bit, 3-Channel SAR ADC |
| Package / case | 32-Lead TQFP (7mm x 7mm x 1mm) |
| Product category | Analog-to-digital converters |
| Series / Family | AD7266 |
| Power supply | 2.7 V to 5.25 V |
| Pins | 32 |
| Mounting Type | Surface Mount |
| Resolution | 12-bit |
| Channels | 2 |
| Sampling Rate | 2 Msps |
| Interface | SPI |
| Input | Differential |
| Reference | Internal 2.5 V |
| Operating temperature (manufacturer ordering record) | -40 °C to 125 °C |
| In stock | 10,701 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Request a Quote
Part of the ADI Precision ADC series.
