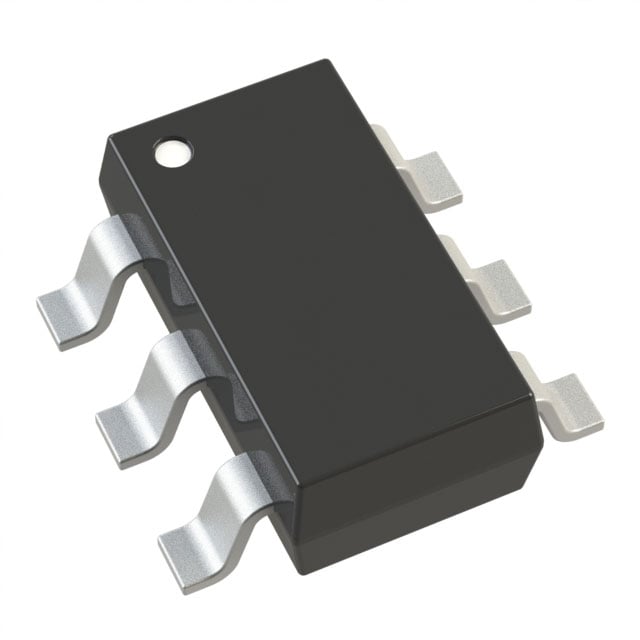

Manufacturer package outline drawing - not a product photo
3 mW, 100 kSPS, 16-Bit ADC in 6 Lead SOT-23
Key Specifications
| Complete manufacturer part number | AD7680BRJZ-REEL7 |
|---|---|
| Manufacturer | Analog Devices |
| Description | 3 mW, 100 kSPS, 16-Bit ADC in 6 Lead SOT-23 |
| Package / case | 6-Lead SOT-23 |
| Product category | Analog-to-digital converters |
| Series / Family | AD7680 |
| Power supply | 2.5 V to 5.5 V |
| Pins | 6 |
| Mounting Type | Surface Mount |
| Resolution | 16-bit |
| Channels | 1 single-ended |
| Sampling Rate | 100 kSPS |
| SNR | 86 dB at 10 kHz |
| Interface | SPI/QSPI/MICROWIRE/DSP |
| Supply Voltage | 2.5 V to 5.5 V |
| Power Dissipation | 3 mW at 2.5 V / 100 kSPS |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 7,119 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Manufacturer package outline drawing - not a product photo for 6-Lead SOT-23. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Request a Quote
Part of the ADI Precision ADC series.
