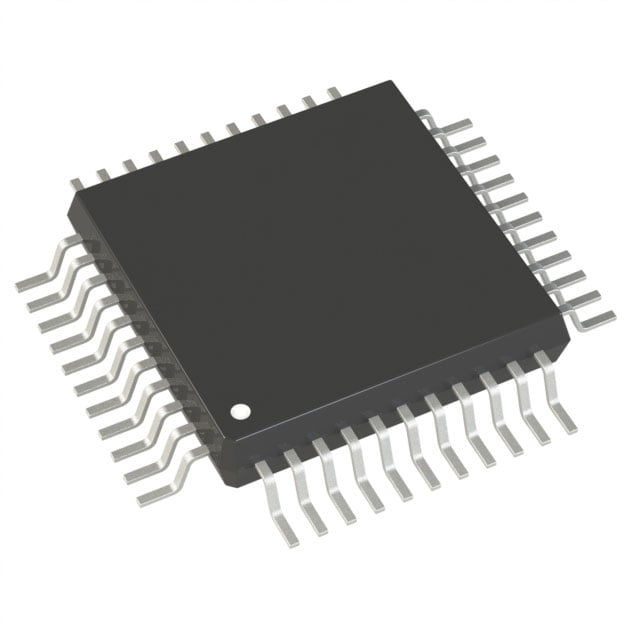

Listing photo. Request current-lot confirmation.
CMOS, 4-Channel, 22-Bit Data Acquisition System
Key Specifications
| Complete manufacturer part number | AD7716BSZ |
|---|---|
| Manufacturer | Analog Devices |
| Description | CMOS, 4-Channel, 22-Bit Data Acquisition System |
| Package / case | 44-Lead MQFP (13.9mm x 10mm) |
| Product category | Component specifications |
| Pins | 44 |
| Number of Bits | 22 |
| Sampling Rate | 2.2k |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Architecture | Sigma-Delta |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 2,120 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
