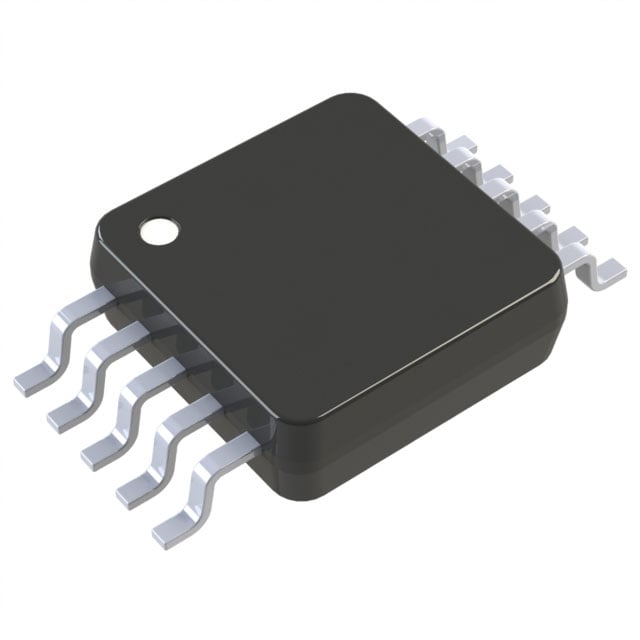

Manufacturer package outline drawing - not a product photo
24-Bit, Single-Channel, Ultra Low Power, Sigma Delta A/D Converter
Key Specifications
| Complete manufacturer part number | AD7791BRMZ-REEL |
|---|---|
| Manufacturer | Analog Devices |
| Description | 24-Bit, Single-Channel, Ultra Low Power, Sigma Delta A/D Converter |
| Package / case | 10-Lead MSOP |
| Product category | Analog to Digital Converters - ADC |
| Series / Family | AD7791 |
| Power supply | 2.5 V to 5.25 V |
| Pins | 10 |
| Mounting Type | Surface Mount |
| Resolution | 24-bit |
| Channels | 1 differential |
| Update Rate | 9.5 Hz to 120 Hz |
| Interface | 3-wire serial (SPI) |
| Reference | External (unbuffered) |
| Input Type | Differential, buffered/unbuffered |
| RMS Noise | 1.1 µV @ 9.5 Hz |
| Supply Current | 75 µA max |
| Operating temperature (manufacturer ordering record) | -40 °C to 105 °C |
| In stock | 12,072 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Manufacturer package outline drawing - not a product photo for 10-Lead MSOP. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Request a Quote
Part of the ADI Precision ADC series.
