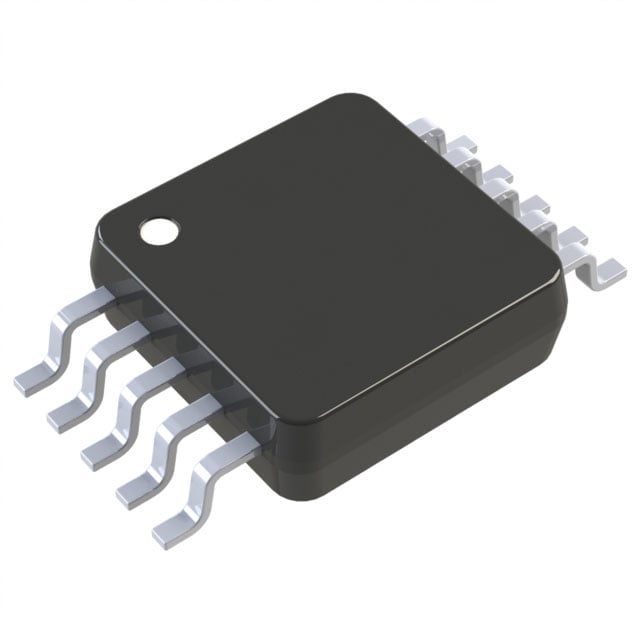

Listing photo. Request current-lot confirmation.
14-Bit, 500 kSPS PulSAR® ADC in MSOP
Key Specifications
| Complete manufacturer part number | AD7946BRMZRL7 |
|---|---|
| Manufacturer | Analog Devices |
| Description | 14-Bit, 500 kSPS PulSAR® ADC in MSOP |
| Package / case | 10-Lead MSOP |
| Product category | Analog-to-digital converters |
| Series / Family | AD7946 |
| Power supply | 2.3 V to 5.5 V |
| Pins | 10 |
| Mounting Type | Surface Mount |
| Resolution | 14-bit |
| Channels | 1 |
| Sampling Rate | 500 ksps |
| Interface | SPI |
| Architecture | PulSAR SAR |
| Input | Differential |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 10,065 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Request a Quote
Part of the ADI Precision ADC series.
