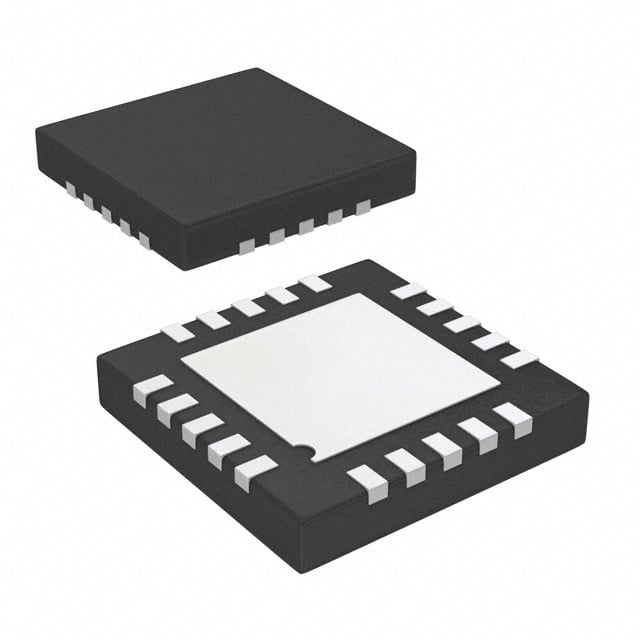

Listing photo. Request current-lot confirmation.
14-Bit, 8-Channel, 250 kSPS PulSAR ADC
Key Specifications
| Complete manufacturer part number | AD7949BCPZRL7 |
|---|---|
| Manufacturer | Analog Devices |
| Description | 14-Bit, 8-Channel, 250 kSPS PulSAR ADC |
| Package / case | 20-Lead LFCSP (4mm x 4mm w/ EP) |
| Product category | Analog-to-digital converters |
| Pins | 20 |
| Series | PulSAR® |
| Number of Bits | 14 |
| Sampling Rate | 250k |
| Number of Inputs | 8 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | SPI, DSP |
| Architecture | SAR |
| Voltage - Supply, Analog | 2.3V ~ 5.5V |
| Voltage - Supply, Digital | 2.3V ~ 5.5V |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 6,139 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
