Complete 12-Bit, 10.0 MSPS Monolithic A/D Converter
Key Specifications
| Complete manufacturer part number | AD9220ARSZ-REEL |
|---|---|
| Manufacturer | Analog Devices |
| Description | Complete 12-Bit, 10.0 MSPS Monolithic A/D Converter |
| Package / case | 28-Lead SSOP |
| Product category | Analog to Digital Converters - ADC |
| Series / Family | AD9220 |
| Power supply | +5 V single supply |
| Pins | 28 |
| Mounting Type | Surface Mount |
| Resolution | 12-bit |
| Channels | 1 |
| Sampling Rate | 10 MSPS |
| Interface | Parallel CMOS (straight binary) |
| Reference | On-chip programmable (external option) |
| Input Type | Single-ended / differential |
| SNR / SFDR | 70 dB / 86 dB typical |
| Supply Voltage | +5 V single |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 3,603 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

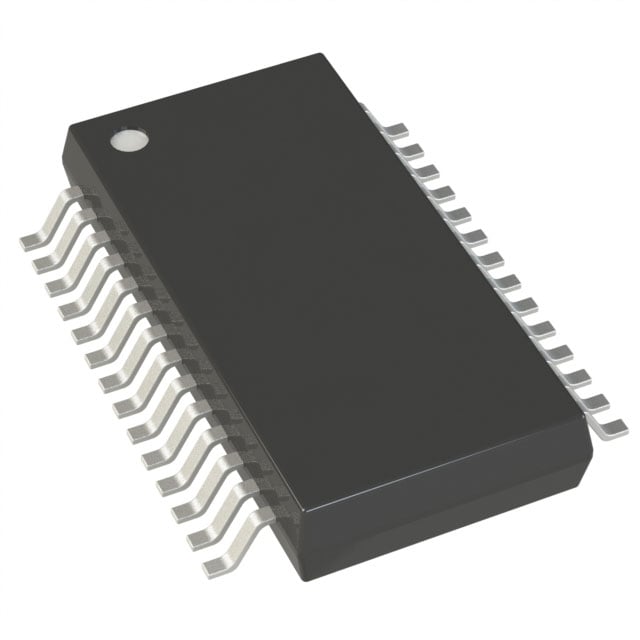

Manufacturer package outline drawing - not a product photo for 28-Lead SSOP. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
