Manufacturer package outline drawing - not a product photo
14-Bit, 150 MSPS, 1.8 V Analog-to-Digital Converter
Key Specifications
| Complete manufacturer part number | AD9254BCPZRL7-150 |
|---|---|
| Manufacturer | Analog Devices |
| Description | 14-Bit, 150 MSPS, 1.8 V Analog-to-Digital Converter |
| Package / case | 48-Lead LFCSP (7mm x 7mm w/ EP) |
| Product category | Analog-to-digital converters |
| Pins | 48 |
| Base product | AD9254 |
| Manufacturer lifecycle | Production (verified on the manufacturer page) |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 8,226 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

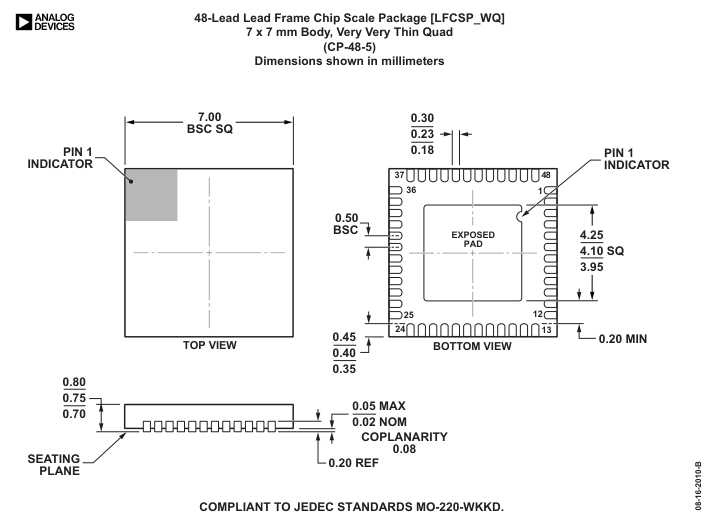

Manufacturer package outline drawing - not a product photo for 48-Lead LFCSP (7mm x 7mm w/ EP). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
