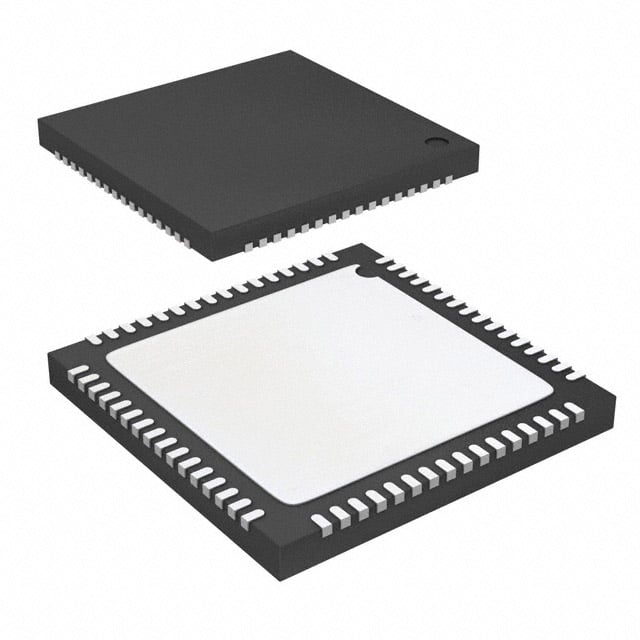

Listing photo. Request current-lot confirmation.
14-Bit, 125 MSPS, 1.8 V Dual Analog-to-Digital Converter (ADC)
Key Specifications
| Complete manufacturer part number | AD9258BCPZ-80 |
|---|---|
| Manufacturer | Analog Devices |
| Description | 14-Bit, 125 MSPS, 1.8 V Dual Analog-to-Digital Converter (ADC) |
| Package / case | 64-Lead LFCSP (9mm x 9mm w/ EP) |
| Product category | Analog-to-digital converters |
| Pins | 64 |
| Number of Bits | 14 |
| Sampling Rate | 80M |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel |
| Architecture | Pipelined |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 4,314 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
