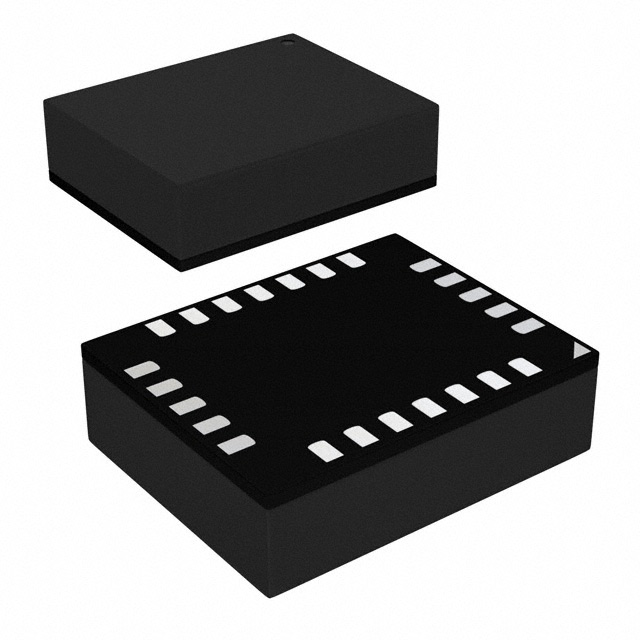

Listing photo. Request current-lot confirmation.
16-Bit, 1 MSPS, Integrated Data Acquisition Subsystem
Key Specifications
| Complete manufacturer part number | ADAQ7980BCCZ |
|---|---|
| Manufacturer | Analog Devices |
| Description | 16-Bit, 1 MSPS, Integrated Data Acquisition Subsystem |
| Package / case | 24-Lead LGA (5mm x 4mm x 1.65mm) |
| Product category | Analog to Digital Converters - ADC |
| Series / Family | ADAQ7980 |
| Power supply | 3.3 V |
| Pins | 24 |
| Mounting Type | Surface Mount |
| Resolution | 16-bit |
| Channels | 1 |
| Sampling Rate | 1 Msps |
| Architecture | µModule SAR |
| Integration | ADC + driver + reference |
| Input | Differential |
| Operating temperature (manufacturer ordering record) | -55 °C to 125 °C |
| In stock | 4,509 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Request a Quote
Part of the ADI Precision ADC series.
