Manufacturer package outline drawing - not a product photo
LC 2 MOS ±15V 8 CHANNEL ANALOG MULTIPLEXER 16PDIP
Key Specifications
| Complete manufacturer part number | ADG408BNZ |
|---|---|
| Manufacturer | Analog Devices |
| Description | LC 2 MOS ±15V 8 CHANNEL ANALOG MULTIPLEXER 16PDIP |
| Package / case | 16-Lead PDIP |
| Product category | Multiplexers |
| Pins | 16 |
| Base product | ADG408 |
| Manufacturer lifecycle | Production (verified on the manufacturer page) |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 4,746 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

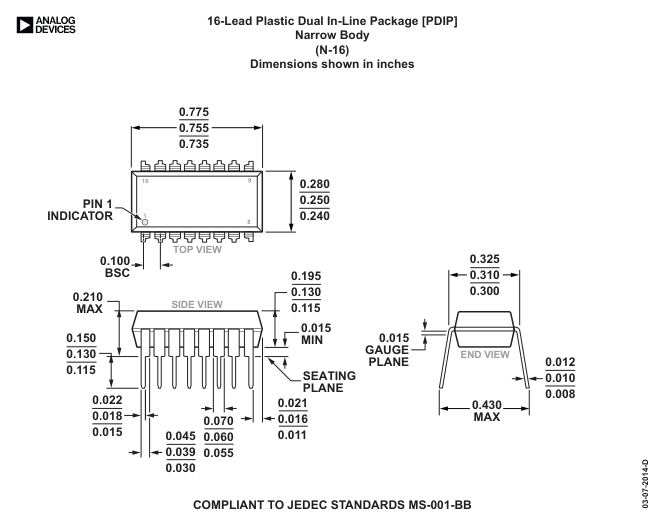

Manufacturer package outline drawing - not a product photo for 16-Lead PDIP. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
