Manufacturer package reference image
IC MCU 8BIT 20MHZ 48TQFP
Key Specifications
| Complete manufacturer part number | ATMEGA4809-AF |
|---|---|
| Manufacturer | Microchip Technology |
| Description | IC MCU 8BIT 20MHZ 48TQFP |
| Package / case | TQFP-48 |
| Product category | Microcontrollers |
| Pins | 48 |
| Manufacturer Description | 20MHz,48KB,TQFP48,Ind 125C, Green, TRAY |
| Lead Count | 48 |
| Manufacturer Packing Media | TRAY |
| Manufacturer Order Multiple | 250 pieces |
| Manufacturer Product Page | View manufacturer listing |
| Temperature range (datasheet ordering guide) | -40 °C to 125 °C |
| In stock | 8,565 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

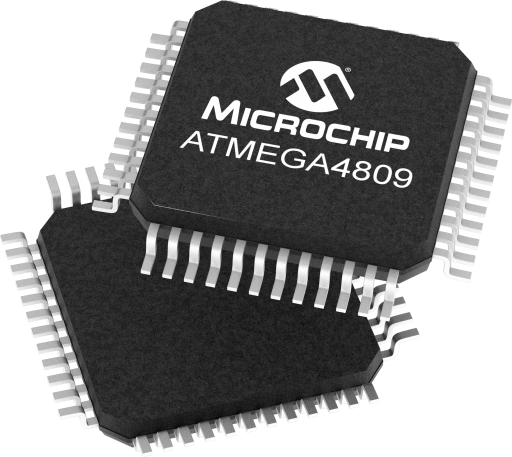

Manufacturer package reference image for TQFP-48. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
