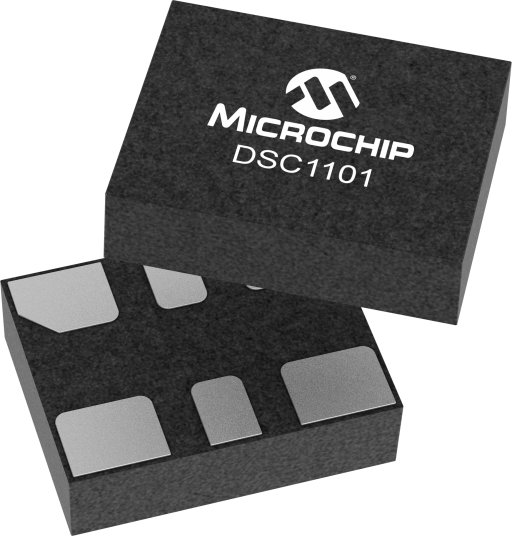

Manufacturer package reference image
MEMS OSC LVCMOS 5MHZ 50PPM 2.5-3.3V -55 TO 125C 3.2 X 2.5MM 6VDFN
Key Specifications
| Complete manufacturer part number | DSC1101CM1-005.0000T |
|---|---|
| Manufacturer | Microchip Technology |
| Description | MEMS OSC LVCMOS 5MHZ 50PPM 2.5-3.3V -55 TO 125C 3.2 X 2.5MM 6VDFN |
| Package / case | VDFN-6 |
| Product category | TIMING AND COMMUNICATIONS GROUP |
| Pins | 6 |
| Manufacturer Description | MEMS OSC, LVCMOS, 5MHz, 50PPM, 2.5-3.3V, -55 to 125C, 3.2 x 2.5mm |
| Lead Count | 6 |
| Manufacturer Packing Media | T/R |
| Manufacturer Order Multiple | 1000 pieces |
| Manufacturer Product Page | View manufacturer listing |
| Temperature range (datasheet ordering guide) | -55 °C to 125 °C |
| In stock | 7,238 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Manufacturer package reference image for VDFN-6. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
