Manufacturer package reference image
70MIPS, DSP, 256KB Flash, 32KB RAM, MCPWM, OpAmps, PTG, 44-pins, up to 125C
Key Specifications
| Complete manufacturer part number | DSPIC33EP256MC204-E/MV |
|---|---|
| Manufacturer | Microchip Technology |
| Description | 70MIPS, DSP, 256KB Flash, 32KB RAM, MCPWM, OpAmps, PTG, 44-pins, up to 125C |
| Package / case | UQFN-48 |
| Product category | Digital Signal Controllers |
| Pins | 48 |
| Manufacturer Description | 70MIPS, DSP, 256KB Flash, 32KB RAM, MCPWM, OpAmps, PTG, 44-pins, up to 125C |
| Lead Count | 48 |
| Manufacturer Packing Media | TUBE |
| Manufacturer Order Multiple | 61 pieces |
| Manufacturer Product Page | View manufacturer listing |
| Temperature range (datasheet ordering guide) | -40 °C to 125 °C |
| In stock | 1,946 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

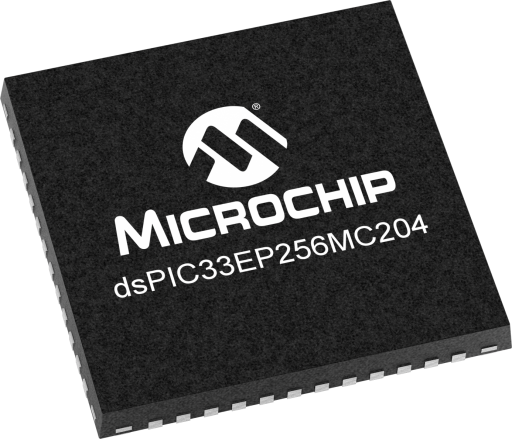

Manufacturer package reference image for UQFN-48. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
