Encoders - 11mm Size Metal Shaft Type EC111 Series
Key Specifications
| Complete manufacturer part number | EC111012010H |
|---|---|
| Manufacturer | Alps Alpine |
| Description | Encoders - 11mm Size Metal Shaft Type EC111 Series |
| Package / case | 11mm size |
| Product category | Encoders |
| Series / Family | EC111 Series |
| Dimensions | 11mm size |
| Operating force | 6(+2.5, -2)N |
| Travel | 0.5±0.3mm |
| Number of pulse | Self-return switch |
| Ratings | 0.1A 5V DC (500µA 5V DC min. ratings) |
| Manufacturer Supply Status | Standard |
| Control part orientation | Vertical |
| Actuator configuration | Flat |
| Actuator length | 20mm |
| Number of detent | Without |
| Push-on switch | With |
| Travel of push-on switch | 0.5mm |
| Output signal | Self-return switch |
| Max./min. operating current (Resistive load) | 10mA/1mA |
| Insulation resistance | 100MΩ min. 250V DC |
| Voltage proof | 300V AC for 1 minute or 360V AC for 2s |
| Mechanical performance | Rotational torque 3 ～ 30mN・m Push-pull strength 100N |
| Rotational torque | 3 ～ 30mN・m |
| Push-pull strength | 100N |
| Durability | Operating life 15,000 cycles |
| Operating life | 15,000 cycles |
| Contact arrangement | Single pole single throw (Push-on) |
| Contact resistance (Initial performance/After lifetime) | 100mΩ max./200mΩ max. |
| Manufacturer Product Page | View exact manufacturer listing |
| Pins | To be confirmed |
| Operating temperature (manufacturer public outline) | -40 °C to 85 °C |
| Control part orientation (manufacturer public outline) | Vertical |
| Actuator configuration (manufacturer public outline) | Flat |
| Actuator length (manufacturer public outline) | 20mm |
| Number of detent (manufacturer public outline) | Without |
| Number of pulse (manufacturer public outline) | Self-return switch |
| Push-on switch (manufacturer public outline) | With |
| Travel of push-on switch (manufacturer public outline) | 0.5mm |
| Dimensions (manufacturer public outline) | 11mm size |
| Electrical performance / Ratings (manufacturer public outline) | 10mA 5V DC |
| Electrical performance / Output signal (manufacturer public outline) | Self-return switch |
| Electrical performance / Max./min. operating current (Resistive load) (manufacturer public outline) | 10mA/1mA |
| Electrical performance / Insulation resistance (manufacturer public outline) | 100MΩ min. 250V DC |
| Electrical performance / Voltage proof (manufacturer public outline) | 300V AC for 1 minute or 360V AC for 2s |
| Mechanical performance / Rotational torque (manufacturer public outline) | 3 ～ 30mN・m |
| Mechanical performance / Push-pull strength (manufacturer public outline) | 100N |
| Durability / Operating life (manufacturer public outline) | 15,000 cycles |
| Push-on switch specifications / Contact arrangement (manufacturer public outline) | Single pole single throw (Push-on) |
| Push-on switch specifications / Travel (manufacturer public outline) | 0.5±0.3mm |
| Push-on switch specifications / Operating force (manufacturer public outline) | 6(+2.5, -2)N |
| Push-on switch specifications / Ratings (manufacturer public outline) | 0.1A 5V DC (500µA 5V DC min. ratings) |
| Push-on switch specifications / Contact resistance (Initial performance/After lifetime) (manufacturer public outline) | 100mΩ max./200mΩ max. |
| Push-on switch specifications / Operating life (manufacturer public outline) | 20,000 times |
| In stock | 2,522 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
These values are the manufacturer public outline specifications shown on the exact part-number page. ALPS Alpine requires formal supply specifications to be obtained before use. Confirm exact dimensions, options and test conditions in those specifications.

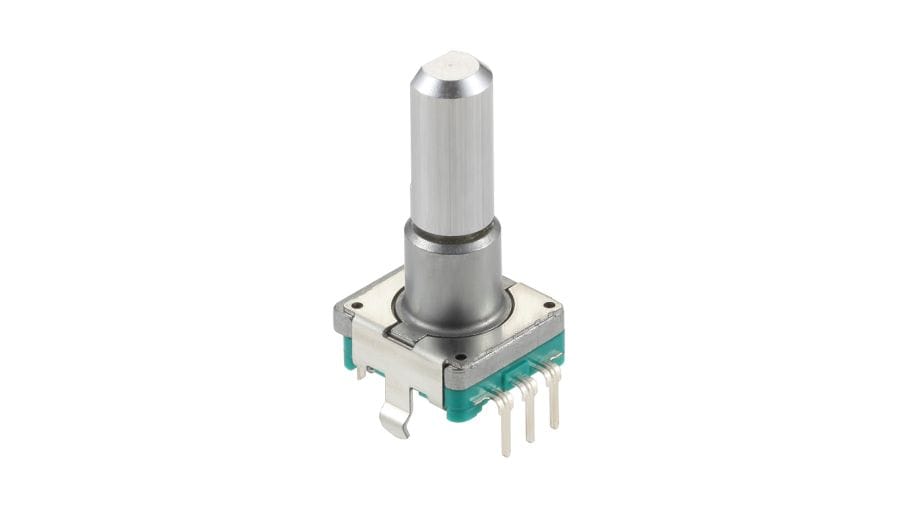

Manufacturer product reference image for 11mm size. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
