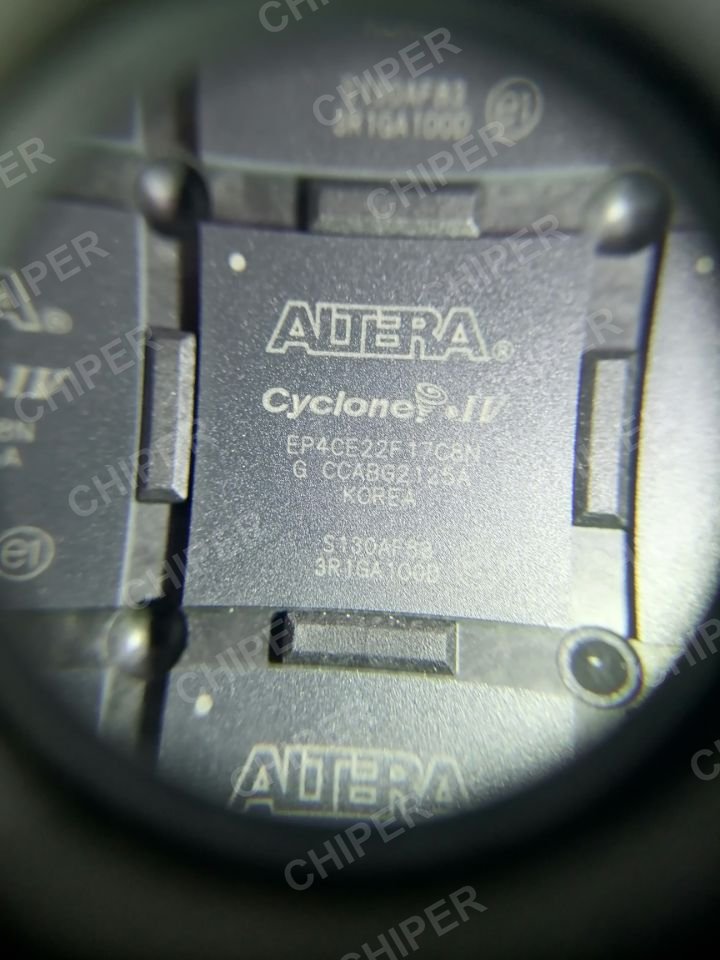

The Intel Cyclone IV E EP4CE22F17C8N is a low-power FPGA that integrates 22,320 logic elements with 594 Kb of embedded memory and 66 embedded 18×18 multipliers in a 256-FBGA (17 mm x 17 mm) package. It runs from a 1.2 V core supply at the commercial temperature range and -8 speed grade, in a compact 256-pin package.
Key Specifications
| Manufacturer | Altera (Intel) |
| Manufacturer Part Number | EP4CE22F17C8N |
| Product Category | FPGA – Field Programmable Gate Array |
| Package / Case | 256-FBGA (17 mm x 17 mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C to +85°C |
| Power Supply | Core (VCCINT) 1.2 V; I/O banks (VCCIO) 1.2 V to 3.3 V |
| Logic Elements | 22,320 |
| Embedded Memory | 594 Kb |
| 18×18 Multipliers | 66 |
| User I/O | 153 |
| Speed Grade | -8 |
| Lifecycle Status | Active |
| Official Documentation | View official documentation |
Key Features
- 22,320 logic elements
- 594 Kb embedded memory
- 66 embedded 18×18 multipliers
- Low 1.2 V core power
- Industrial temperature range
- Up to 153 user I/O
- Mature, long-life platform
- Quartus Prime software support
Applications
- Industrial automation
- Communications and networking
- Motor control and drives
- Video and imaging
- High-volume embedded systems
Sourcing
Availability, lead time, date code and commercial terms are subject to confirmation at the time of quotation.
Quality
CHIPER sources brand-new, unused components and provides quality inspection, shortage and long lead-time sourcing, and one-stop BOM procurement. Every part is verified before shipment.
FAQ
What logic density does the EP4CE22F17C8N provide?
The EP4CE22F17C8N offers 22,320 logic elements.
Is the Cyclone IV E still supported for new designs?
Yes, the Cyclone IV E family remains a widely deployed, active platform for cost-sensitive applications.
