Manufacturer package reference image
3-A, 29-V, linear voltage regulator
Key Specifications
| Complete manufacturer part number | LM1085ISX-3.3/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | 3-A, 29-V, linear voltage regulator |
| Package / case | TO-263 (KTT) |
| Product category | Voltage regulators |
| Series / Family | LM1085 |
| Power supply | 3.3 V fixed output (input up to 29 V) |
| Pins | 3 |
| TI package code | KTT |
| Mounting Type | Surface Mount |
| Output Current | 3 A |
| Output Voltage | 3.3 V (fixed) |
| Dropout Voltage | 1.5 V max at 3 A |
| Line Regulation | 0.015% |
| Load Regulation | 0.1% |
| Reference | Zener-trimmed bandgap |
| Protection | Current limiting, thermal shutdown |
| Temperature range (manufacturer ordering record) | -40 °C to 125 °C |
| In stock | 3,778 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

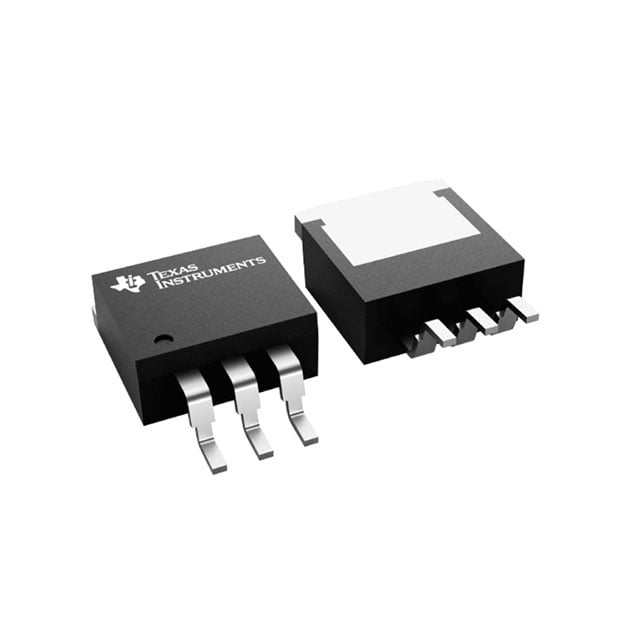

Manufacturer package reference image for TO-263 (KTT). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
Request a Quote
Part of the TI LDO series.
