Order the LM1117IDTX-3.3/NOPB - 800-mA 15-V linear voltage regulator | NDP | 3 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | LM1117IDTX-3.3/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the LM1117IDTX-3.3/NOPB - 800-mA 15-V linear voltage regulator | NDP | 3 | -40 to 125 from Texas Instruments. |
| Package / case | TO-252 (NDP) |
| Product category | Voltage regulators |
| Pins | 3 |
| Rating | Catalog |
| Vin (max) (V) | 15 |
| Vin (min) (V) | 2.6 |
| Iout (max) (A) | 0.8 |
| Output options | Adjustable Output, Fixed Output |
| Vout (max) (V) | 13.8 |
| Vout (min) (V) | 1.25 |
| Fixed output options (V) | 1.8, 2.5, 3.3, 5, 13.8 |
| Noise (µVrms) | 38 |
| PSRR at 100 KHz (dB) | 47 |
| Iq (typ) (mA) | 5 |
| Thermal resistance θJA (°C/W) | 24, 39, 41, 45, 62 |
| Load capacitance (min) (µF) | 10 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 3 |
| Dropout voltage (Vdo) (typ) (mV) | 1200 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 2,500 | LARGE T&R |
| In stock | 3,355 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
Available manufacturer parameters matched to the complete ordering code. Historical captures may be used. Parameter verification does not certify product photography or current stock; consult the linked datasheet for conditions.

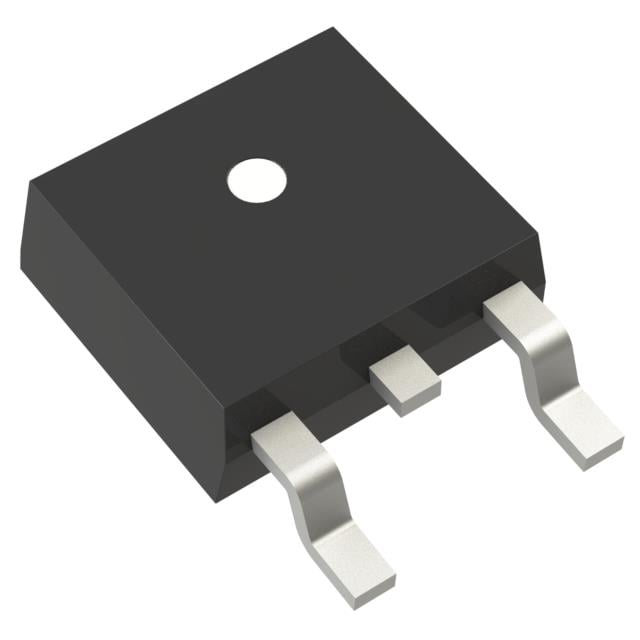

Manufacturer package reference image for TO-252 (NDP). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
