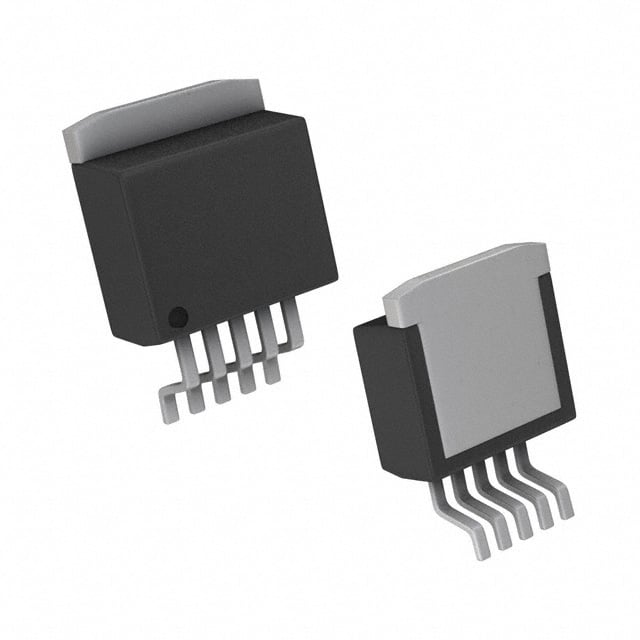

Listing photo. Request current-lot confirmation.
Order the LM2941S/NOPB - 1-A, 26-V, high-PSRR, adjustable low-dropout voltage regulator with enable from -40°C to +125°C | KTT | 5 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | LM2941S/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the LM2941S/NOPB - 1-A, 26-V, high-PSRR, adjustable low-dropout voltage regulator with enable from -40°C to +125°C | KTT | 5 | -40 to 125 from Texas Instruments. |
| Package / case | TO-263 (KTT) |
| Product category | Voltage regulators |
| Pins | 5 |
| Rating | Catalog |
| Vin (max) (V) | 26 |
| Vin (min) (V) | 6 |
| Iout (max) (A) | 1 |
| Output options | Adjustable Output, Fixed Output |
| Vout (max) (V) | 20 |
| Vout (min) (V) | 5 |
| Fixed output options (V) | 20 |
| Noise (µVrms) | 600 |
| PSRR at 100 KHz (dB) | 67 |
| Iq (typ) (mA) | 10 |
| Features | Enable |
| Thermal resistance θJA (°C/W) | 32, 40.6, 41 |
| Load capacitance (min) (µF) | 22 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 5 |
| Dropout voltage (Vdo) (typ) (mV) | 500 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 45 | TUBE |
| In stock | 4,148 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
Available manufacturer parameters matched to the complete ordering code. Historical captures may be used. Parameter verification does not certify product photography or current stock; consult the linked datasheet for conditions.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
