Order the LM78L05ACMX/NOPB - 100-mA, 30-V, linear voltage regulator | D | 8 | 0 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | LM78L05ACMX/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the LM78L05ACMX/NOPB - 100-mA, 30-V, linear voltage regulator | D | 8 | 0 to 125 from Texas Instruments. |
| Package / case | SOIC (D) |
| Product category | Voltage regulators |
| Series / Family | LM78L05 |
| Power supply | Up to 30 V |
| Pins | 8 |
| TI package code | D |
| Mounting Type | Surface Mount |
| Type | LDO linear regulator |
| Output Current | 100 mA |
| Output Voltage | Fixed 5.0 V |
| Input | Up to 30 V |
| Temperature range (manufacturer ordering record) | 0 °C to 125 °C |
| Rating | Catalog |
| Vin (max) (V) | 30 |
| Vin (min) (V) | 5.3, 6.7 |
| Iout (max) (A) | 0.1 |
| Output options | Fixed Output |
| Fixed output options (V) | 3.3, 5, 6, 6.2, 9, 12, 15 |
| Noise (µVrms) | 40, 80, 85, 90, 125, 145, 290, 388 |
| PSRR at 100 KHz (dB) | 40 |
| Iq (typ) (mA) | 2, 3, 3.8, 4 |
| Thermal resistance θJA (°C/W) | 54.7, 108, 115, 128.8, 158.7 |
| Load capacitance (min) (µF) | 0.01 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 4 |
| Dropout voltage (Vdo) (typ) (mV) | 1600 |
| Operating temperature (exact ordering record) | 0 to 125 °C |
| Standard quantity / packing | 2,500 | LARGE T&R |
| In stock | 6,892 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
TI exact ordering page and explicitly identified base product page verified on 2026-11-04. Electrical fields refer to the named base product. Package and temperature refer to the exact ordering code. Package reference image is not a stock-lot photograph. Consult the datasheet for electrical limits and test conditions.

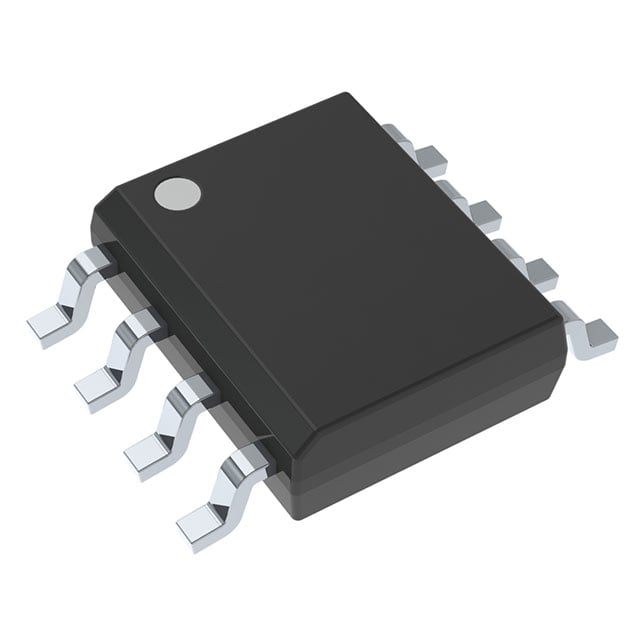

Manufacturer package reference image for SOIC (D). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
