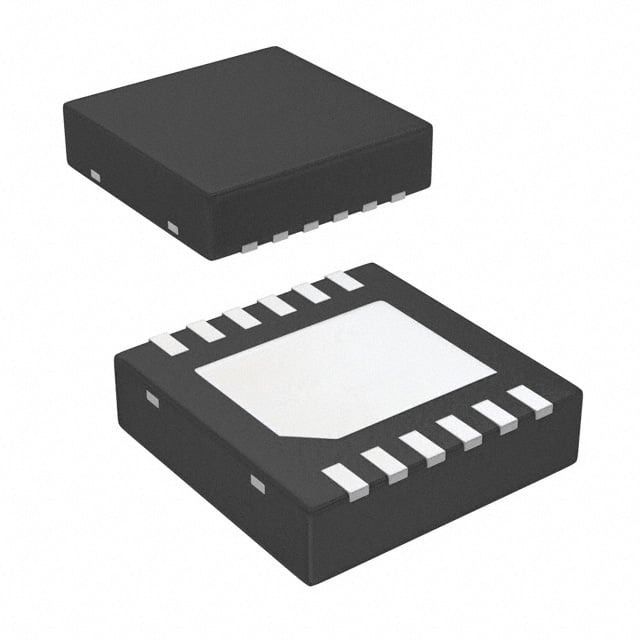

Listing photo. Request current-lot confirmation.
Order the LP38798SDE-ADJ/NOPB - 800-mA, 20-V, low-noise, high-PSRR, adjustable low-dropout voltage regulator with enable | DNT | 12 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | LP38798SDE-ADJ/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the LP38798SDE-ADJ/NOPB - 800-mA, 20-V, low-noise, high-PSRR, adjustable low-dropout voltage regulator with enable | DNT | 12 | -40 to 125 from Texas Instruments. |
| Package / case | WSON (DNT) |
| Product category | Voltage regulators |
| Pins | 12 |
| Rating | Catalog |
| Vin (max) (V) | 20 |
| Vin (min) (V) | 3 |
| Iout (max) (A) | 0.8 |
| Output options | Adjustable Output |
| Vout (max) (V) | 19.8 |
| Vout (min) (V) | 1.2 |
| Noise (µVrms) | 5 |
| PSRR at 100 KHz (dB) | 65 |
| Iq (typ) (mA) | 1.4 |
| Features | Enable |
| Thermal resistance θJA (°C/W) | 35 |
| Load capacitance (min) (µF) | 1 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 2 |
| Dropout voltage (Vdo) (typ) (mV) | 200 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 250 | SMALL T&R |
| In stock | 4,934 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
Available manufacturer parameters matched to the complete ordering code. Historical captures may be used. Parameter verification does not certify product photography or current stock; consult the linked datasheet for conditions.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
