Manufacturer package reference image
Order the LP3985IM5-3.3/NOPB - 150-mA, low-dropout voltage regulator with bypass & enable | DBV | 5 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | LP3985IM5-3.3/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the LP3985IM5-3.3/NOPB - 150-mA, low-dropout voltage regulator with bypass & enable | DBV | 5 | -40 to 125 from Texas Instruments. |
| Package / case | SOT-23 (DBV) |
| Product category | Voltage regulators |
| Series / Family | LP3985 |
| Power supply | Up to 15 V |
| Pins | 5 |
| TI package code | DBV |
| Mounting Type | Surface Mount |
| Type | LDO regulator |
| Output Current | 150 mA |
| Output Voltage | Fixed 3.3 V |
| Temperature range (manufacturer ordering record) | -40 °C to 125 °C |
| Rating | Catalog |
| Vin (max) (V) | 6 |
| Vin (min) (V) | 2.5 |
| Iout (max) (A) | 0.15 |
| Output options | Fixed Output |
| Vout (max) (V) | 5 |
| Vout (min) (V) | 2.5 |
| Fixed output options (V) | 2.5, 2.6, 2.7, 2.8, 2.85, 2.9, 3, 3.1, 3.2, 3.3, 4.7, 4.75, 4.8, 5 |
| Noise (µVrms) | 30 |
| PSRR at 100 KHz (dB) | 42 |
| Iq (typ) (mA) | 0.085 |
| Features | Enable |
| Thermal resistance θJA (°C/W) | 220 |
| Load capacitance (min) (µF) | 1 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 2 |
| Dropout voltage (Vdo) (typ) (mV) | 60 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 1,000 | SMALL T&R |
| In stock | 5,362 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
TI exact ordering page and explicitly identified base product page verified on 2026-11-04. Electrical fields refer to the named base product. Package and temperature refer to the exact ordering code. Package reference image is not a stock-lot photograph. Consult the datasheet for electrical limits and test conditions.

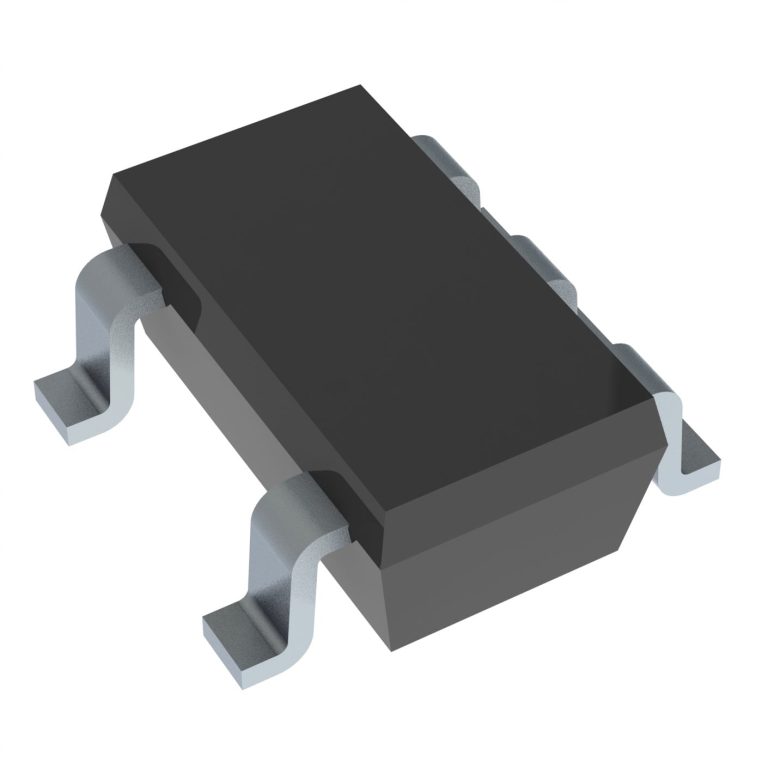

Manufacturer package reference image for SOT-23 (DBV). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
Request a Quote
Part of the TI LDO series.
