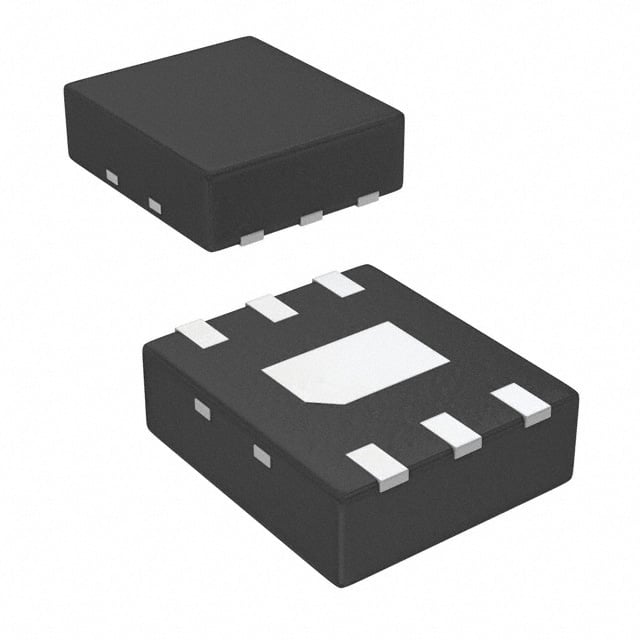

Listing photo. Request current-lot confirmation.
Order the LP5900SD-3.3/NOPB - 150-mA, low-noise, low-IQ, low-dropout voltage regulator with enable | NGF | 6 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | LP5900SD-3.3/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the LP5900SD-3.3/NOPB - 150-mA, low-noise, low-IQ, low-dropout voltage regulator with enable | NGF | 6 | -40 to 125 from Texas Instruments. |
| Package / case | WSON (NGF) |
| Product category | Voltage regulators |
| Pins | 6 |
| Rating | Catalog |
| Vin (max) (V) | 5.5 |
| Vin (min) (V) | 2.5 |
| Iout (max) (A) | 0.15 |
| Output options | Fixed Output |
| Vout (max) (V) | 1.5, 1.8, 1.9, 2, 2.1, 2.2, 2.3, 2.5, 2.6, 2.65, 2.7, 2.75, 2.8, 2.85, 3, 3.3, 4.5 |
| Vout (min) (V) | 1.5 |
| Fixed output options (V) | 1.5, 1.8, 1.9, 2, 2.1, 2.2, 2.3, 2.5, 2.6, 2.65, 2.7, 2.75, 2.8, 2.85, 3, 3.3, 4.5 |
| Noise (µVrms) | 6.5 |
| PSRR at 100 KHz (dB) | 40 |
| Iq (typ) (mA) | 0.025 |
| Features | Enable |
| Thermal resistance θJA (°C/W) | 80 |
| Load capacitance (min) (µF) | 0.47 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 3 |
| Dropout voltage (Vdo) (typ) (mV) | 80 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 1,000 | SMALL T&R |
| In stock | 12,813 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
Available manufacturer parameters matched to the complete ordering code. Historical captures may be used. Parameter verification does not certify product photography or current stock; consult the linked datasheet for conditions.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
