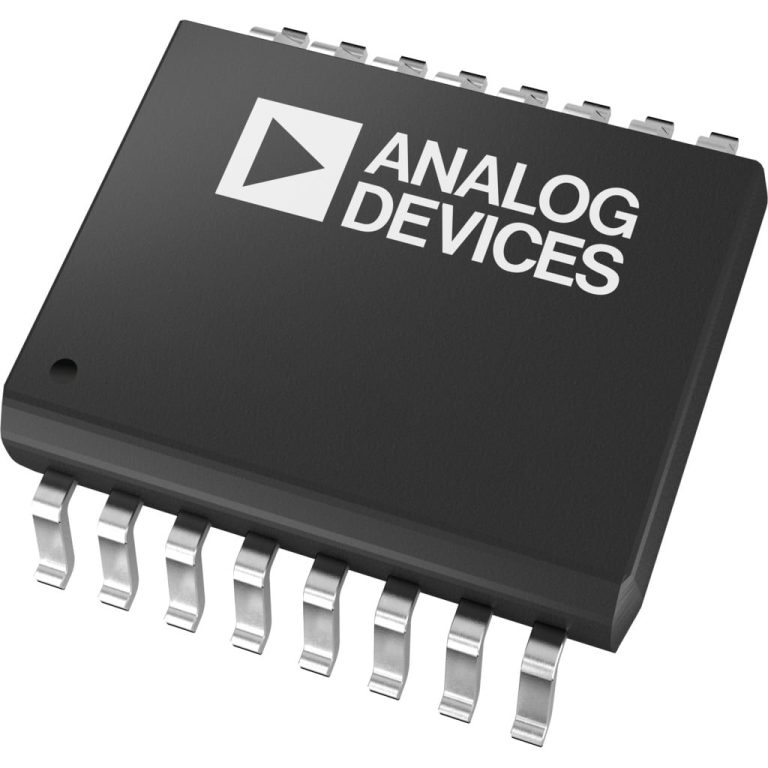

Manufacturer package outline drawing - not a product photo
Micropower, 3V, 12-bit, 8-Channel 175ksps ADCs
Key Specifications
| Complete manufacturer part number | LTC1863LIGN#PBF |
|---|---|
| Manufacturer | Analog Devices |
| Description | Micropower, 3V, 12-bit, 8-Channel 175ksps ADCs |
| Package / case | 16-Lead SSOP (Narrow 0.15 Inch) |
| Product category | Analog-to-digital converters |
| Series / Family | LTC1863L |
| Power supply | 3.3 V |
| Pins | 16 |
| Mounting Type | Surface Mount |
| Resolution | 12-bit |
| Channels | 8 |
| Sampling | 200 kSPS |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| Sample Rate (manufacturer family overview) | 175ksps |
| Low Power (manufacturer family overview) | 750µA at 175ksps, 300µA at 50ksps |
| In stock | 3,882 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
Available manufacturer parameters matched to the complete ordering code. Historical captures may be used. Parameter verification does not certify product photography or current stock; consult the linked datasheet for conditions.
Manufacturer package outline drawing - not a product photo for 16-Lead SSOP (Narrow 0.15 Inch). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
