Manufacturer package outline drawing - not a product photo
Fully Integrated 24V/12A Switched Capacitor DC/DC Converter with Overvoltage and Overcurrent Protections
Key Specifications
| Complete manufacturer part number | LTC7825AV#PBF |
|---|---|
| Manufacturer | Analog Devices |
| Description | Fully Integrated 24V/12A Switched Capacitor DC/DC Converter with Overvoltage and Overcurrent Protections |
| Package / case | 28-Lead LQFN (4mm × 5mm × 0.95mm) |
| Product category | Switching regulators |
| Pins | 28 |
| Base product | LTC7825 |
| Manufacturer lifecycle | Production (verified on the manufacturer page) |
| Operating temperature (manufacturer ordering record) | -40 °C to 125 °C |
| In stock | 8,838 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

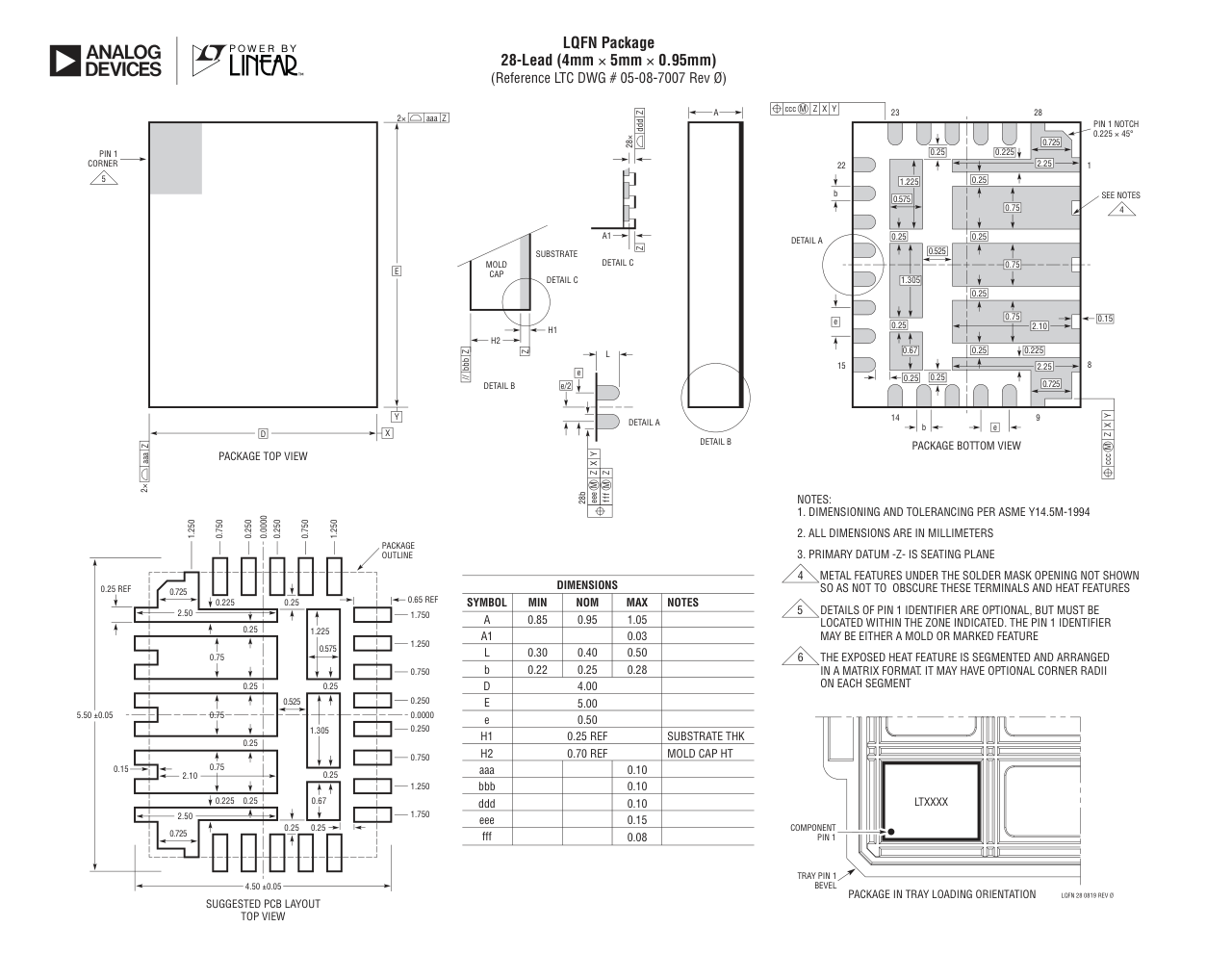

Manufacturer package outline drawing - not a product photo for 28-Lead LQFN (4mm × 5mm × 0.95mm). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Request a Quote
Why Source from CHIPER
- Quality inspection — every part is visually inspected and authenticity verified before shipment.
- Traceability — batch and date-code information provided on request.
- Shipping — worldwide shipping with major couriers (DHL / FedEx / UPS), fully insured.
- Payment — flexible terms including bank transfer (T/T) in major currencies.
- After-sales — dedicated support and RMA handling for every order.
Contact: xiaoqi@chiper-components.com · +86 18570555062
