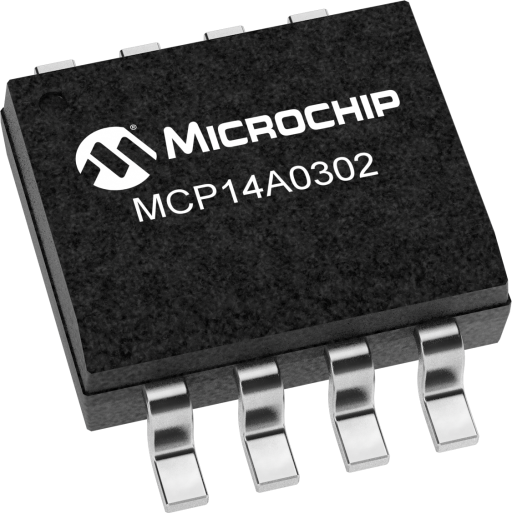

Manufacturer package reference image
Non-Inverting 3.0A single MOSFET driver with low threshold input and enable pin
Key Specifications
| Complete manufacturer part number | MCP14A0302-E/SN |
|---|---|
| Manufacturer | Microchip Technology |
| Description | Non-Inverting 3.0A single MOSFET driver with low threshold input and enable pin |
| Package / case | SOIC-8 |
| Product category | Gate drivers |
| Pins | 8 |
| Manufacturer Description | Non-Inverting 3.0A single MOSFET driver with low threshold input and enable pin |
| Lead Count | 8 |
| Manufacturer Packing Media | TUBE |
| Manufacturer Order Multiple | 100 pieces |
| Manufacturer Product Page | View manufacturer listing |
| Temperature range (datasheet ordering guide) | -40 °C to 125 °C |
| In stock | 6,965 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Manufacturer package reference image for SOIC-8. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
