Manufacturer package reference image
Highly integrated mixed signal dual low side PWM Controller
Key Specifications
| Complete manufacturer part number | MCP19114-E/MQVAO |
|---|---|
| Manufacturer | Microchip Technology |
| Description | Highly integrated mixed signal dual low side PWM Controller |
| Package / case | QFN-28 |
| Product category | Analog Power and Interface Division |
| Pins | 28 |
| Manufacturer Description | Highly integrated mixed signal dual low side PWM Controller |
| Lead Count | 28 |
| Manufacturer Packing Media | TUBE |
| Manufacturer Order Multiple | 73 pieces |
| Manufacturer Product Page | View manufacturer listing |
| Temperature range (datasheet ordering guide) | -40 °C to 125 °C |
| In stock | 11,408 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

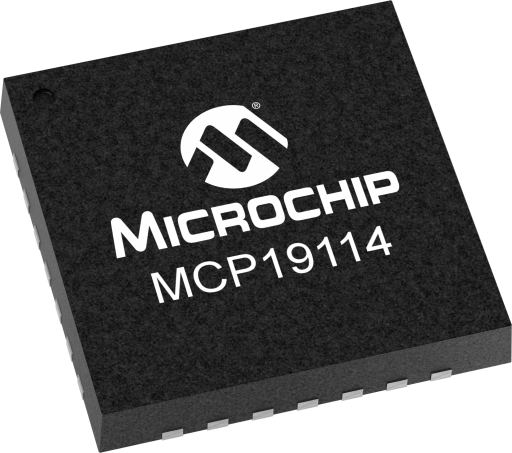

Manufacturer package reference image for QFN-28. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
