Manufacturer package reference image
64KB Flash, 4KB RAM, 512bytes EEPROM, MVIO, 10b ADC2, 8b DAC, ACP, Comp, PWM,
Key Specifications
| Complete manufacturer part number | PIC18F26Q24-E/SSVAO |
|---|---|
| Manufacturer | Microchip Technology |
| Description | 64KB Flash, 4KB RAM, 512bytes EEPROM, MVIO, 10b ADC2, 8b DAC, ACP, Comp, PWM, |
| Package / case | SSOP-28 |
| Product category | EEPROMs |
| Pins | 28 |
| Manufacturer Description | 64KB Flash, 4KB RAM, 512bytes EEPROM, MVIO, 10b ADC2, 8b DAC, ACP, Comp, PWM, |
| Lead Count | 28 |
| Manufacturer Packing Media | TUBE |
| Manufacturer Order Multiple | 47 pieces |
| Manufacturer Product Page | View manufacturer listing |
| Temperature range (datasheet ordering guide) | -40 °C to 125 °C |
| In stock | 3,514 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

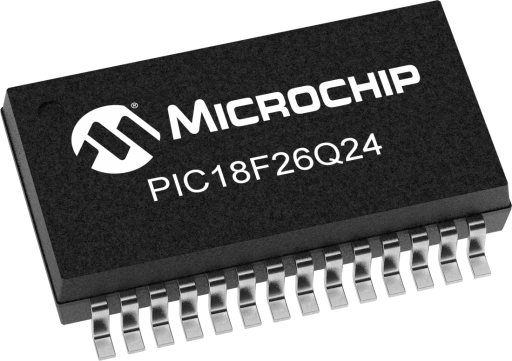

Manufacturer package reference image for SSOP-28. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
