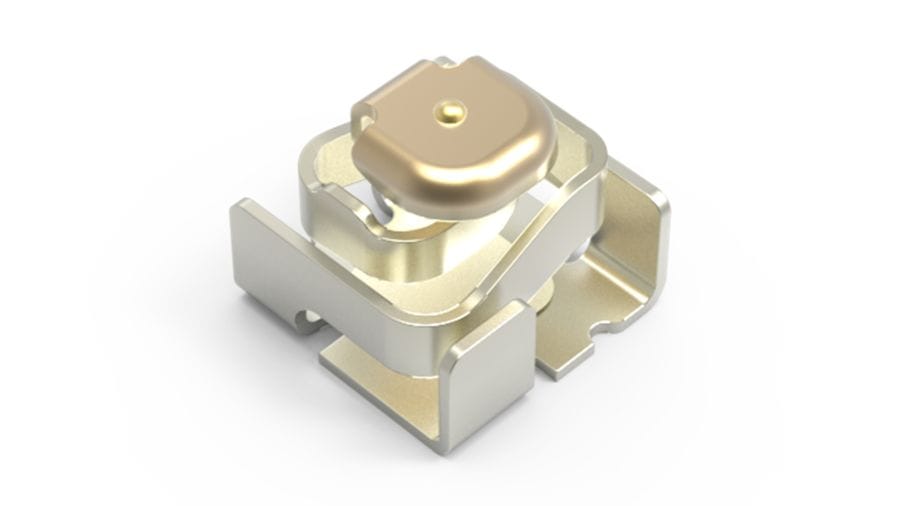

Manufacturer product reference image
Connectors - Spring Contact SCTA_A Series (Standard Type)
Key Specifications
| Complete manufacturer part number | SCTA1A0100 |
|---|---|
| Manufacturer | Alps Alpine |
| Description | Connectors - Spring Contact SCTA_A Series (Standard Type) |
| Package / case | Surface mounting type · 1.4×1.4mm |
| Product category | Connectors |
| Series / Family | SCTA_A Series |
| Mounting type | Surface mounting type |
| Dimensions (W×D) | 1.4×1.4mm |
| Manufacturer Supply Status | Standard |
| Product height | 1.2mm |
| Height in use | 0.7 to 1.0mm |
| Packing system | Taping |
| Minimum order unit (pcs.) | 15,000 |
| Operating temprature range | -30℃ to +85℃ |
| Rated current | 3A |
| Contact resistance (Initial) | Connector contacts 40mΩ max. |
| Stroke Frequency | 500 times |
| Japan | 15,000 |
| Export | 15,000 |
| Manufacturer Product Page | View exact manufacturer listing |
| Pins | To be confirmed |
| Operating temperature | To be confirmed |
| Dimensions (W×D) (manufacturer public outline) | 1.4×1.4mm |
| Product height (manufacturer public outline) | 1.2mm |
| Height in use (manufacturer public outline) | 0.7 to 1.0mm |
| Mounting type (manufacturer public outline) | Surface mounting type |
| Operating temprature range (manufacturer public outline) | -30℃ to +85℃ |
| Rated current (manufacturer public outline) | 3A |
| Contact resistance (Initial) (manufacturer public outline) | Connector contacts 40mΩ max. |
| Stroke Frequency (manufacturer public outline) | 500 times |
| In stock | 4,438 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
These values are the manufacturer public outline specifications shown on the exact part-number page. ALPS Alpine requires formal supply specifications to be obtained before use. Confirm exact dimensions, options and test conditions in those specifications.
Manufacturer product reference image for Surface mounting type · 1.4×1.4mm. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
