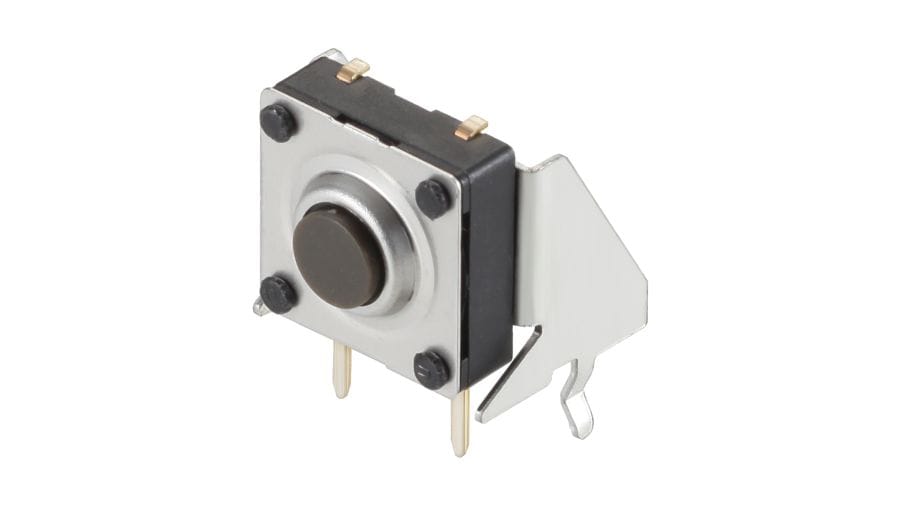

Manufacturer product reference image
TACT Switch™ - 10mm Square (Snap-in) SKQB Series
Key Specifications
| Complete manufacturer part number | SKQBLBA010 |
|---|---|
| Manufacturer | Alps Alpine |
| Description | TACT Switch™ - 10mm Square (Snap-in) SKQB Series |
| Package / case | 11.5×11.9×11.0mm |
| Product category | TACT Switch™ |
| Series / Family | SKQB Series |
| Type | Snap-in |
| Dimensions(W×D×H) | 11.5×11.9×11.0mm |
| Operating force | 1.57N |
| Travel | 0.3mm |
| Rating (max.) | 50mA 12V DC |
| Manufacturer Supply Status | Standard |
| Operating direction | Side push |
| Operating life | 100,000 cycles |
| Initial contact resistance | 500mΩ max. |
| Stem color | Dark gray |
| Series type | Sharp feeling type |
| Rating (min.) | 10μA 1V DC |
| Electrical performance | Insulation resistance 100MΩ min. 100V DC for 1 min. Voltage proof 250V AC for 1 min. |
| Insulation resistance | 100MΩ min. 100V DC for 1 min. |
| Voltage proof | 250V AC for 1 min. |
| Environmental performance | Cold -40℃ 96h Dry heat 90℃ 96h Damp heat 60℃, 90 to 95%RH 1,000h |
| Cold | -40℃ 96h |
| Dry heat | 90℃ 96h |
| Damp heat | 60℃, 90 to 95%RH 1,000h |
| Water-proof & Dust-proof Type | With individual conditions |
| Temperature of water | 60℃ |
| Depth of water | 10cm |
| Immersion duration | 1h |
| Minimum order unit(pcs.) | Japan 1,000 Export 1,000 |
| Pins | To be confirmed |
| Operating temperature (manufacturer public outline) | -40 °C to 90 °C |
| Type (manufacturer record) | Snap-in |
| Type (manufacturer public outline) | Snap-in |
| Operating force (manufacturer public outline) | 1.57N |
| Operating direction (manufacturer public outline) | Side push |
| Travel (manufacturer public outline) | 0.3mm |
| Operating life (manufacturer public outline) | 100,000 cycles |
| Initial contact resistance (manufacturer public outline) | 500mΩ max. |
| Stem color (manufacturer public outline) | Dark gray |
| Dimensions(W×D×H) (manufacturer public outline) | 11.5×11.9×11.0mm |
| Series type (manufacturer public outline) | Sharp feeling type |
| Rating (max.) (manufacturer public outline) | 50mA 12V DC |
| Rating (min.) (manufacturer public outline) | 10μA 1V DC |
| Electrical performance / Insulation resistance (manufacturer public outline) | 100MΩ min. 100V DC for 1 min. |
| Electrical performance / Voltage proof (manufacturer public outline) | 250V AC for 1 min. |
| Durability / Vibration (manufacturer public outline) | 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively |
| Environmental performance / Cold (manufacturer public outline) | -40℃ 96h |
| Environmental performance / Dry heat (manufacturer public outline) | 90℃ 96h |
| Environmental performance / Damp heat (manufacturer public outline) | 60℃, 90 to 95%RH 1,000h |
| Water Resistance Function / Water-proof & Dust-proof Type (manufacturer public outline) | With individual conditions |
| Water Resistance Function / Depth of water (manufacturer public outline) | 10cm |
| Water Resistance Function / Immersion duration (manufacturer public outline) | 1h |
| In stock | 4,420 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
These values are the manufacturer public outline specifications shown on the exact part-number page. ALPS Alpine requires formal supply specifications to be obtained before use. Confirm exact dimensions, options and test conditions in those specifications.
Manufacturer product reference image for 11.5×11.9×11.0mm. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
