TACT Switch™ - 3.9×2.9mm Side Push (Surface Mount) SKTD Series
Key Specifications
| Complete manufacturer part number | SKTDLDE010 |
|---|---|
| Manufacturer | Alps Alpine |
| Description | TACT Switch™ - 3.9×2.9mm Side Push (Surface Mount) SKTD Series |
| Package / case | 3.9×2.9×1.55 |
| Product category | TACT Switch™ |
| Series / Family | SKTD Series |
| Type | Surface mount |
| Dimensions(W×D×H) | 3.9×2.9×1.55 |
| Operating force | 1.6N |
| Travel | 0.15mm |
| Manufacturer Supply Status | Standard |
| Operating direction | Side push |
| Product height | 1.55mm |
| Operating life | 200,000 cycles |
| Initial contact resistance | 500mΩ max. |
| Water-proof & Dust-proof Type | IP6X equivalent/IPX7 |
| Series type | Sharp feeling type |
| Absolute Maximum Ratings | 50mA 12V DC |
| Rating (min.) | 10μA 1V DC |
| Electrical performance | Insulation resistance 100MΩ min. 100V DC for 1 min. Voltage proof 100V AC for 1 min. |
| Insulation resistance | 100MΩ min. 100V DC for 1 min. |
| Voltage proof | 100V AC for 1 min. |
| Environmental performance | Cold -40℃ 96h Dry heat 85℃ 96h Damp heat 60℃, 90 to 95%RH 96h |
| Cold | -40℃ 96h |
| Dry heat | 85℃ 96h |
| Damp heat | 60℃, 90 to 95%RH 96h |
| Minimum order unit(pcs.) | Japan 4,500 Export 4,500 |
| Japan | 4,500 |
| Export | 4,500 |
| Manufacturer Product Page | View exact manufacturer listing |
| Pins | To be confirmed |
| Operating temperature (manufacturer public outline) | -30 °C to 85 °C |
| Type (manufacturer record) | Surface mount |
| Type (manufacturer public outline) | Surface mount |
| Operating force (manufacturer public outline) | 1.6N |
| Operating direction (manufacturer public outline) | Side push |
| Travel (manufacturer public outline) | 0.15mm |
| Product height (manufacturer public outline) | 1.55mm |
| Operating life (manufacturer public outline) | 200,000 cycles |
| Initial contact resistance (manufacturer public outline) | 500mΩ max. |
| Water-proof & Dust-proof Type (manufacturer public outline) | IP6X equivalent/IPX7 |
| Dimensions(W×D×H) (manufacturer public outline) | 3.9×2.9×1.55 |
| Series type (manufacturer public outline) | Sharp feeling type |
| Absolute Maximum Ratings (manufacturer public outline) | 50mA 12V DC |
| Rating (min.) (manufacturer public outline) | 10μA 1V DC |
| Electrical performance / Insulation resistance (manufacturer public outline) | 100MΩ min. 100V DC for 1 min. |
| Electrical performance / Voltage proof (manufacturer public outline) | 100V AC for 1 min. |
| Durability / Vibration (manufacturer public outline) | 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively |
| Environmental performance / Cold (manufacturer public outline) | -40℃ 96h |
| Environmental performance / Dry heat (manufacturer public outline) | 85℃ 96h |
| Environmental performance / Damp heat (manufacturer public outline) | 60℃, 90 to 95%RH 96h |
| In stock | 12,550 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
These values are the manufacturer public outline specifications shown on the exact part-number page. ALPS Alpine requires formal supply specifications to be obtained before use. Confirm exact dimensions, options and test conditions in those specifications.

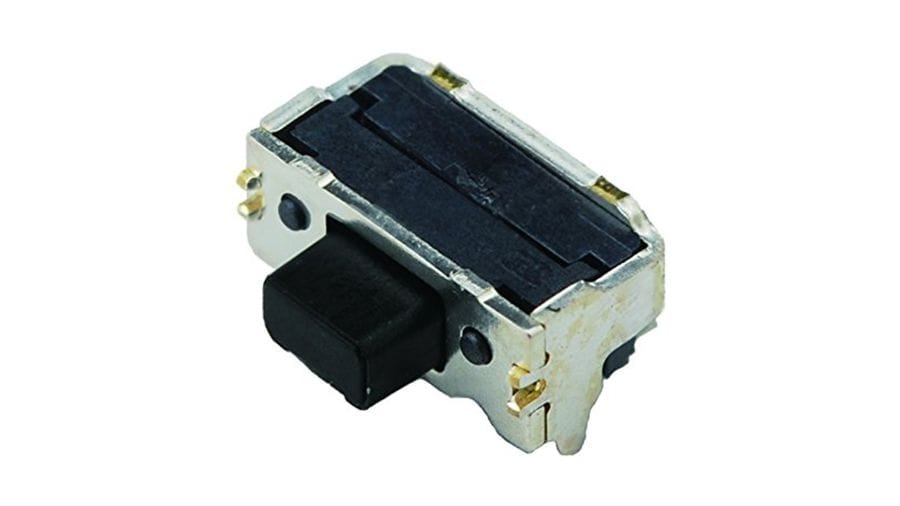

Manufacturer product reference image for 3.9×2.9×1.55. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
