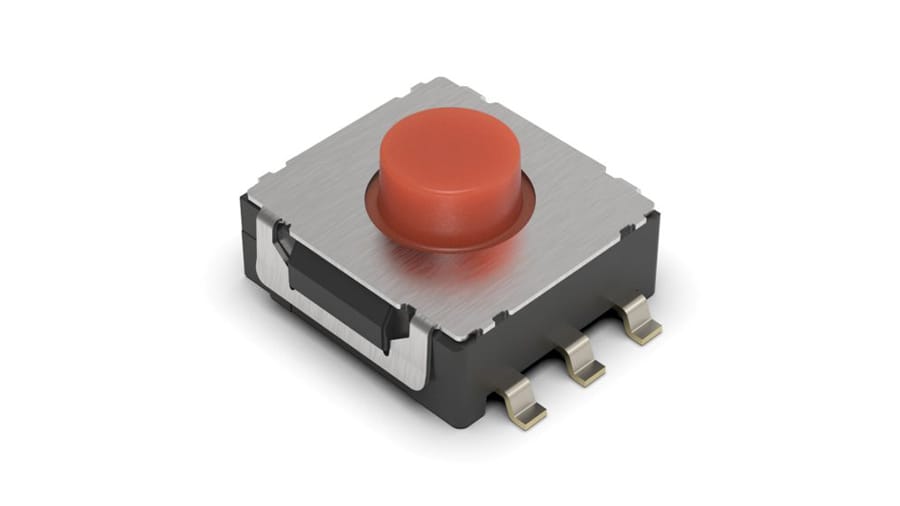

Manufacturer product reference image
TACT Switch™ - 8.0mm Square Double Action Type (Surface Mount) SKUJ Series
Key Specifications
| Complete manufacturer part number | SKUJBBE010 |
|---|---|
| Manufacturer | Alps Alpine |
| Description | TACT Switch™ - 8.0mm Square Double Action Type (Surface Mount) SKUJ Series |
| Package / case | 8.0×8.0×4.5mm |
| Product category | TACT Switch™ |
| Series / Family | SKUJ Series |
| Type | Surface mount |
| Dimensions(W×D×H) | 8.0×8.0×4.5mm |
| Operating force | 1st 4.0N, 2nd 8.0N |
| Travel | 1st 0.5mm, All 0.95mm |
| Manufacturer Supply Status | Standard |
| Operating direction | Top push |
| Product height | 4.5mm |
| Operating life | 100,000 cycles |
| Initial contact resistance | 500mΩ max. |
| Series type | Sharp feeling type |
| Absolute Maximum Ratings | 50mA 16V DC |
| Rating (min.) | 10μA 1V DC |
| Electrical performance | Insulation resistance 100MΩ min. 100V DC for 1 min. Voltage proof 250V AC for 1 min. |
| Insulation resistance | 100MΩ min. 100V DC for 1 min. |
| Voltage proof | 250V AC for 1 min. |
| Environmental performance | Cold -40℃ 1000h Dry heat 90℃ 1000h Damp heat 60℃, 90 to 95%RH 1000h |
| Cold | -40℃ 1000h |
| Dry heat | 90℃ 1000h |
| Damp heat | 60℃, 90 to 95%RH 1000h |
| Minimum order unit(pcs.) | Japan 7,800 Export 7,800 |
| Japan | 7,800 |
| Export | 7,800 |
| Manufacturer Product Page | View exact manufacturer listing |
| Pins | To be confirmed |
| Operating temperature (manufacturer public outline) | -40 °C to 90 °C |
| Type (manufacturer record) | Surface mount |
| Type (manufacturer public outline) | Surface mount |
| Operating force (manufacturer public outline) | 1st 4.0N, 2nd 8.0N |
| Operating direction (manufacturer public outline) | Top push |
| Travel (manufacturer public outline) | 1st 0.5mm, All 0.95mm |
| Product height (manufacturer public outline) | 4.5mm |
| Operating life (manufacturer public outline) | 100,000 cycles |
| Initial contact resistance (manufacturer public outline) | 500mΩ max. |
| Dimensions(W×D×H) (manufacturer public outline) | 8.0×8.0×4.5mm |
| Series type (manufacturer public outline) | Sharp feeling type |
| Absolute Maximum Ratings (manufacturer public outline) | 50mA 16V DC |
| Rating (min.) (manufacturer public outline) | 10μA 1V DC |
| Electrical performance / Insulation resistance (manufacturer public outline) | 100MΩ min. 100V DC for 1 min. |
| Electrical performance / Voltage proof (manufacturer public outline) | 250V AC for 1 min. |
| Durability / Vibration (manufacturer public outline) | 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively |
| Environmental performance / Cold (manufacturer public outline) | -40℃ 1000h |
| Environmental performance / Dry heat (manufacturer public outline) | 90℃ 1000h |
| Environmental performance / Damp heat (manufacturer public outline) | 60℃, 90 to 95%RH 1000h |
| In stock | 1,659 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
These values are the manufacturer public outline specifications shown on the exact part-number page. ALPS Alpine requires formal supply specifications to be obtained before use. Confirm exact dimensions, options and test conditions in those specifications.
Manufacturer product reference image for 8.0×8.0×4.5mm. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
