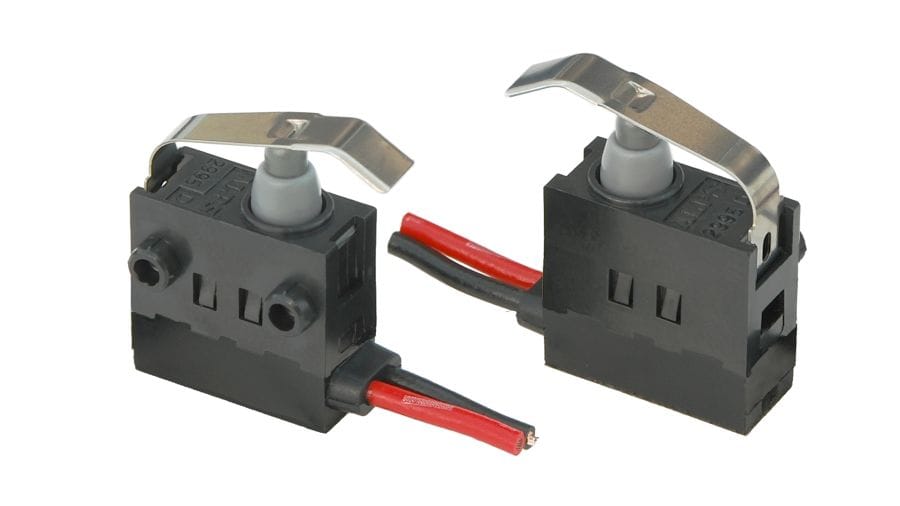

Manufacturer product reference image
Switches - Water-proof Type SPVQ3 Series
Key Specifications
| Complete manufacturer part number | SPVQ350700 |
|---|---|
| Manufacturer | Alps Alpine |
| Description | Switches - Water-proof Type SPVQ3 Series |
| Package / case | 5.3×13.0×8.35mm |
| Product category | Switches |
| Series / Family | SPVQ3 Series |
| Operating force | 3N max. |
| Manufacturer Supply Status | Standard |
| Poles | 1 |
| Positions | 1 |
| Changeover timing | Non shorting |
| Operation part shape | Actuator A |
| Terminal type | With wire (Right side) |
| Main body form | Boss - left side |
| Dimensions (W×D×H) | 5.3×13.0×8.35mm |
| Rating(max.)/(min.)(Resistive load) | 0.1A 12V DC/50μA 5V DC |
| Contact resistance(Initial/After operating life) | 500mΩ max./1Ω max. |
| Insulation resistance | 100MΩ min. 500V DC |
| Voltage proof | 500V AC for 1 minute |
| Mechanical performance | Wire strength 30N for 1 minute Actuator strength 20N |
| Wire strength | 30N for 1 minute |
| Actuator strength | 20N |
| Operating life without load | 300,000 cycles 1Ω max. |
| Operating life with load Rating(max.)(Resistive load) | 300,000 cycles 1Ω max. |
| Environmental performance | Cold -40℃ 500h Dry heat 85℃ 500h Damp heat 60℃, 90 to 95%RH 500h |
| Cold | -40℃ 500h |
| Dry heat | 85℃ 500h |
| Damp heat | 60℃, 90 to 95%RH 500h |
| Minimum order unit(pcs.) | Japan 168 Export 672 |
| Japan | 168 |
| Pins | To be confirmed |
| Operating temperature (manufacturer public outline) | -40 °C to 85 °C |
| Poles (manufacturer public outline) | 1 |
| Positions (manufacturer public outline) | 1 |
| Changeover timing (manufacturer public outline) | Non shorting |
| Operation part shape (manufacturer public outline) | Actuator A |
| Terminal type (manufacturer public outline) | With wire (Right side) |
| Operating force (manufacturer public outline) | 3N max. |
| Main body form (manufacturer public outline) | Boss - left side |
| Dimensions (W×D×H) (manufacturer public outline) | 5.3×13.0×8.35mm |
| Rating(max.)/(min.)(Resistive load) (manufacturer public outline) | 0.1A 12V DC/50μA 5V DC |
| Electrical performance / Contact resistance(Initial/After operating life) (manufacturer public outline) | 500mΩ max./1Ω max. |
| Electrical performance / Insulation resistance (manufacturer public outline) | 100MΩ min. 500V DC |
| Electrical performance / Voltage proof (manufacturer public outline) | 500V AC for 1 minute |
| Mechanical performance / Wire strength (manufacturer public outline) | 30N for 1 minute |
| Mechanical performance / Actuator strength (manufacturer public outline) | 20N |
| Durability / Operating life without load (manufacturer public outline) | 300,000 cycles 1Ω max. |
| Durability / Operating life with load Rating(max.)(Resistive load) (manufacturer public outline) | 300,000 cycles 1Ω max. |
| Environmental performance / Cold (manufacturer public outline) | -40℃ 500h |
| Environmental performance / Dry heat (manufacturer public outline) | 85℃ 500h |
| Environmental performance / Damp heat (manufacturer public outline) | 60℃, 90 to 95%RH 500h |
| In stock | 9,577 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
These values are the manufacturer public outline specifications shown on the exact part-number page. ALPS Alpine requires formal supply specifications to be obtained before use. Confirm exact dimensions, options and test conditions in those specifications.
Manufacturer product reference image for 5.3×13.0×8.35mm. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Some exact-order specifications remain to be confirmed in the manufacturer documentation.
