Manufacturer package reference image
2 A, 1.5 MHz PWM step-down switching regulator with synchronous rectification
Key Specifications
| Complete manufacturer part number | ST1S09IPUR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | 2 A, 1.5 MHz PWM step-down switching regulator with synchronous rectification |
| Package / case | DFN6 3x3 |
| Product category | Switching Voltage Regulators |
| Pins | 6 |
| CPU frequency (ST overview) | 1.5 MHz |
| Grade | Industrial |
| Packing Type | Tape And Reel |
| RoHs compliant | Ecopack2 |
| Operating temperature (manufacturer ordering record) | -30 °C to 125 °C |
| Input Voltage Min Volt (manufacturer ordering record) | 4.5 |
| Input Voltage Max Volt (manufacturer ordering record) | 5.5 |
| Operating Temp Min Celsius (manufacturer ordering record) | -30.0 |
| Operating Temp Max Celsius (manufacturer ordering record) | 125.0 |
| In stock | 6,818 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

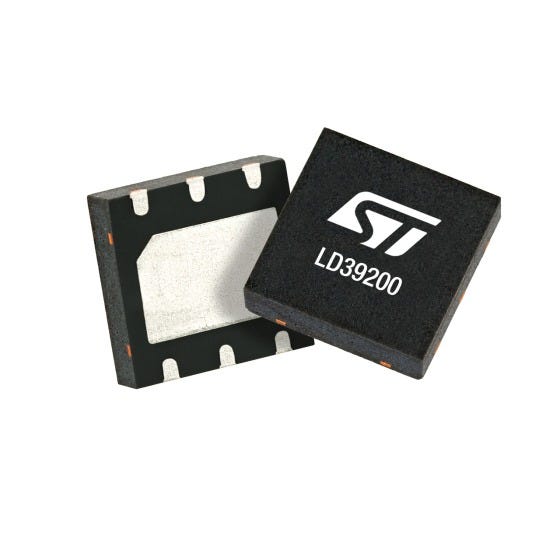

Manufacturer package reference image for DFN6 3x3. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
