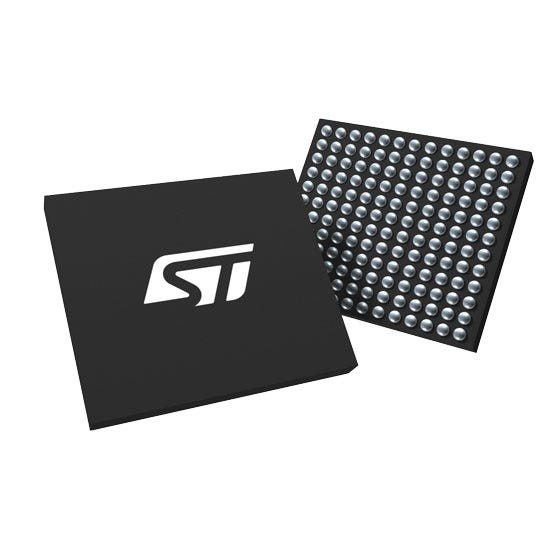

Manufacturer package reference image
High-performance and DSP with DP-FPU, Arm Cortex-M7 + Cortex-M4 MCU with 2MBytes of Flash memory, 1MB RAM, 480 MHz CPU, Art Accelerator, L1 cache, external memory interface, large set of peripherals, SMPS
Key Specifications
| Complete manufacturer part number | STM32H747ZIY6TR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | High-performance and DSP with DP-FPU, Arm Cortex-M7 + Cortex-M4 MCU with 2MBytes of Flash memory, 1MB RAM, 480 MHz CPU, Art Accelerator, L1 cache, external memory interface, large set of peripherals, SMPS |
| Package / case | WLCSP 156 5x4.7x0.6 P 0.35 mm |
| Product category | Microcontrollers |
| Pins | 156 |
| Core | Arm Cortex-M4 |
| Supply voltage | 1.62 V to 3.6 V |
| Flash memory (ST overview) | 2MBytes |
| RAM (ST overview) | 1MB |
| CPU frequency (ST overview) | 480 MHz |
| Grade | Industrial |
| Packing Type | Tape And Reel |
| RoHs compliant | Ecopack2 |
| MCU series | STM32H7 |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| Core (manufacturer record) | Arm Cortex-M4 |
| Supply Voltage Min Volt (manufacturer ordering record) | 1.62 |
| Supply Voltage Max Volt (manufacturer ordering record) | 3.6 |
| Operating Temp Min Celsius (manufacturer ordering record) | -40.0 |
| Operating Temp Max Celsius (manufacturer ordering record) | 85.0 |
| Core (manufacturer ordering record) | Arm Cortex-M4 |
| In stock | 5,561 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Manufacturer package reference image for WLCSP 156 5x4.7x0.6 P 0.35 mm. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
