Manufacturer package reference image
High performance Arm Cortex-M55 MCU, 800MHz, 4.2MB SRAM, NeoChrom GPU, JPEG Codec, H-264 enc
Key Specifications
| Complete manufacturer part number | STM32N645Z0H3Q |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | High performance Arm Cortex-M55 MCU, 800MHz, 4.2MB SRAM, NeoChrom GPU, JPEG Codec, H-264 enc |
| Package / case | VFBGA 142 8x8x1 P 0.5 mm |
| Product category | Microcontrollers |
| Pins | 142 |
| Core | Arm Cortex-M55 |
| Supply voltage | 1.71 V to 3.6 V |
| RAM (ST overview) | 4.2MB |
| CPU frequency (ST overview) | 800MHz |
| Grade | Industrial |
| Packing Type | Tray |
| RoHs compliant | Ecopack2 |
| MCU series | STM32N6 |
| Operating temperature (manufacturer ordering record) | -40 °C to 125 °C |
| Core (manufacturer record) | Arm Cortex-M55 |
| Supply Voltage Min Volt (manufacturer ordering record) | 1.71 |
| Supply Voltage Max Volt (manufacturer ordering record) | 3.6 |
| Operating Temp Min Celsius (manufacturer ordering record) | -40.0 |
| Operating Temp Max Celsius (manufacturer ordering record) | 125.0 |
| Core (manufacturer ordering record) | Arm Cortex-M55 |
| In stock | 6,910 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

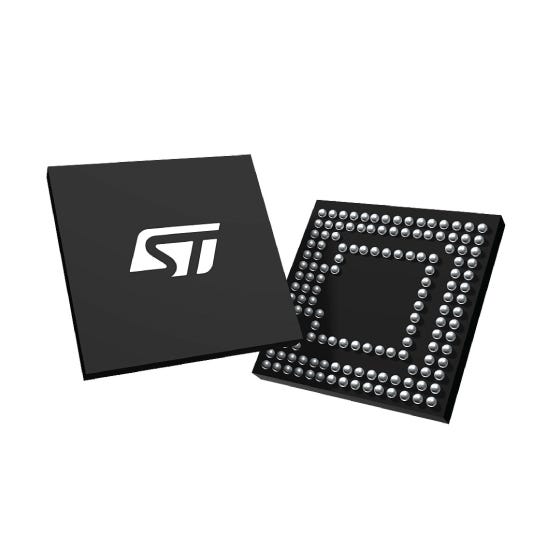

Manufacturer package reference image for VFBGA 142 8x8x1 P 0.5 mm. Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
