Manufacturer package reference image
24-channel, 12-bit PWM LED driver with internal Oscillator
Key Specifications
| Complete manufacturer part number | TLC5947DAP |
|---|---|
| Manufacturer | Texas Instruments |
| Description | 24-channel, 12-bit PWM LED driver with internal Oscillator |
| Package / case | HTSSOP (DAP) |
| Product category | Oscillators |
| TI package code | DAP |
| Pins | 32 |
| Operating temperature (manufacturer ordering record) | -40 °C to 85 °C |
| In stock | 11,596 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.

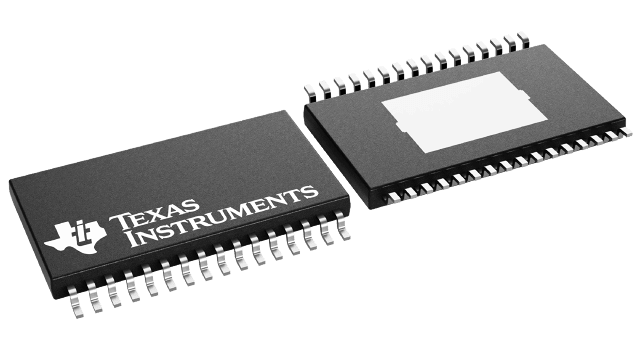

Manufacturer package reference image for HTSSOP (DAP). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
