Manufacturer package reference image
Order the TLV70218DBVR - 300-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable | DBV | 5 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | TLV70218DBVR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the TLV70218DBVR - 300-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable | DBV | 5 | -40 to 125 from Texas Instruments. |
| Package / case | SOT-23 (DBV) |
| Product category | Voltage regulators |
| Series / Family | TLV702 |
| Power supply | Up to 5.5 V |
| Pins | 5 |
| TI package code | DBV |
| Mounting Type | Surface Mount |
| Type | LDO linear regulator |
| Output Current | 300 mA |
| Output Voltage | Fixed 1.8 V |
| Input | Up to 5.5 V |
| Rating | Catalog |
| Vin (max) (V) | 5.5 |
| Vin (min) (V) | 2 |
| Iout (max) (A) | 0.3 |
| Output options | Fixed Output |
| Vout (max) (V) | 4.75 |
| Vout (min) (V) | 1.2 |
| Fixed output options (V) | 1.2, 1.3, 1.5, 1.8, 2.5, 2.8, 2.9, 3, 3.1, 3.3, 3.5, 3.6, 3.7, 4.3, 4.5, 4.75 |
| Noise (µVrms) | 48 |
| PSRR at 100 KHz (dB) | 51 |
| Iq (typ) (mA) | 0.03 |
| Features | Enable |
| Thermal resistance θJA (°C/W) | 210.9, 249 |
| Load capacitance (min) (µF) | 0.1 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 2 |
| Dropout voltage (Vdo) (typ) (mV) | 220 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 3,000 | LARGE T&R |
| In stock | 2,094 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
TI exact ordering page and explicitly identified base product page verified on 2026-11-04. Electrical fields refer to the named base product. Package and temperature refer to the exact ordering code. Package reference image is not a stock-lot photograph. Consult the datasheet for electrical limits and test conditions.

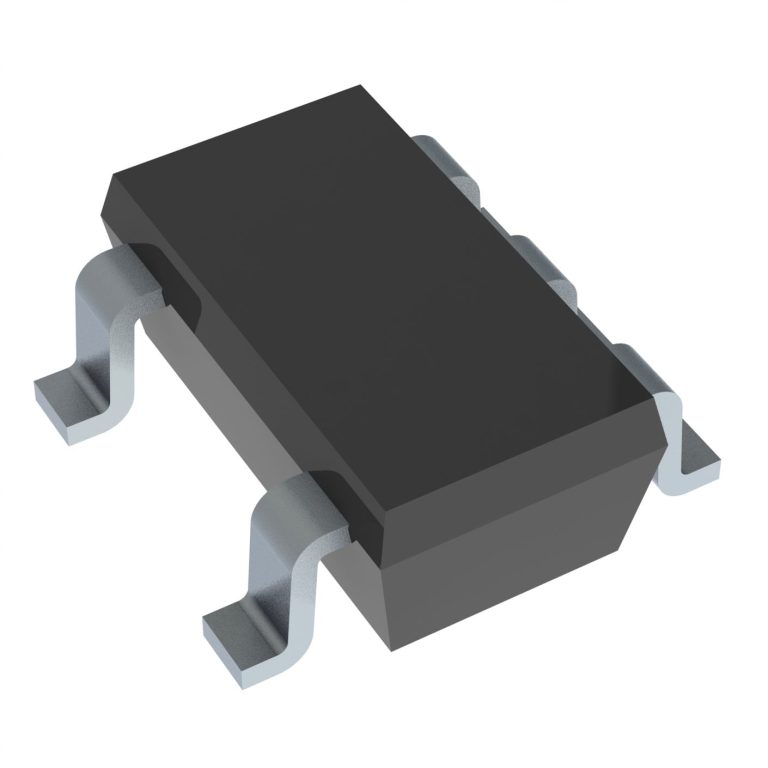

Manufacturer package reference image for SOT-23 (DBV). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Request a Quote
Part of the TI LDO series.
