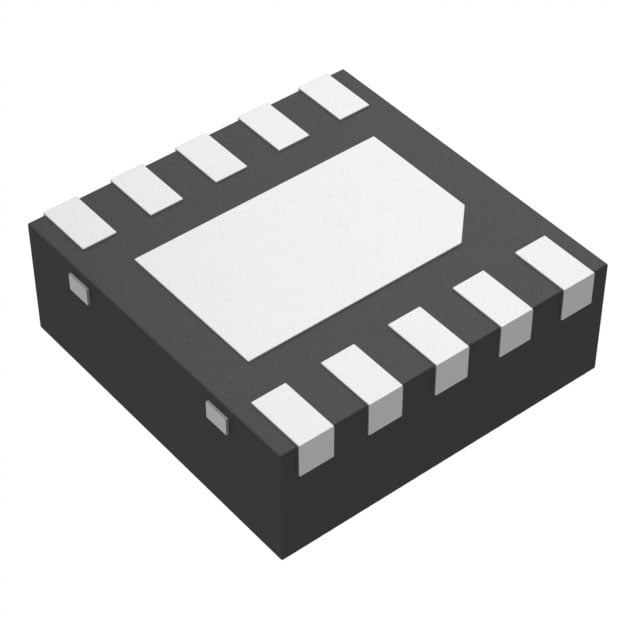

The Texas Instruments TLV75101PDSQR is a 1 A low-quiescent-current LDO in a 10-pin SON package with an adjustable 0.55 V to 5.5 V output. It targets battery-powered and portable designs where standby current matters.
Key Specifications
| Manufacturer | Texas Instruments |
| Exact Manufacturer Part Number | TLV75101PDSQR |
| Product Category | Power Management – Voltage Regulators |
| Series / Family | TLV751 |
| Package / Case | 10-SON |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C to +125°C |
| Power Supply | 1.5 V to 6 V (adj 0.55 V to 5.5 V out) |
| Output Current | 1 A |
| Output Voltage | Adjustable 0.55 V to 5.5 V |
| Quiescent | Low IQ |
| Input | 1.5 V to 6 V |
| Lifecycle Status | Active |
| Official Documentation | View official documentation |
Key Features
- 1 A low-IQ LDO
- Adjustable 0.55 V to 5.5 V output
- Low quiescent current
- Wide input range
- 10-pin SON package
- Thermal and current protection
Applications
- Battery-powered devices
- Portable electronics
- Low-power rails
- Wearables
Sourcing
Availability, lead time, date code and commercial terms are subject to confirmation at the time of quotation.
Quality
CHIPER sources brand-new, unused components and provides quality inspection, shortage and long lead-time sourcing, and one-stop BOM procurement. Every part is verified before shipment.
FAQ
What output range does the TLV751 provide?
It provides an adjustable 0.55 V to 5.5 V output at up to 1 A.
Why is low IQ important?
Low quiescent current minimises standby draw in battery-powered designs.
