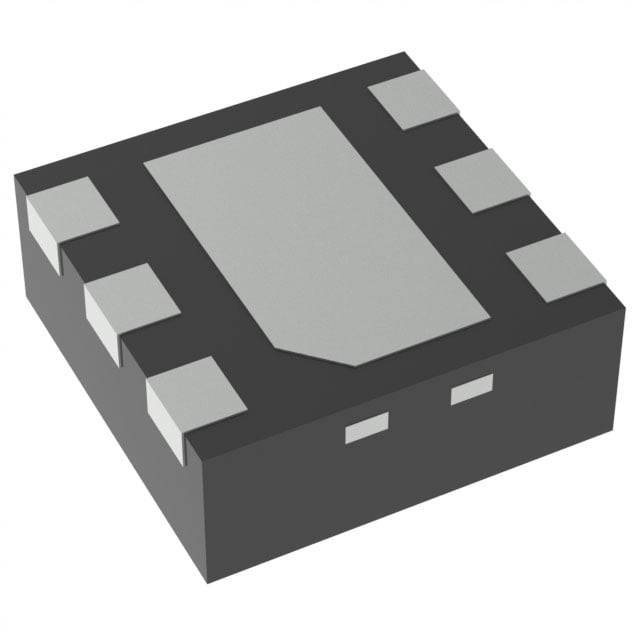

Listing photo. Request current-lot confirmation.
Order the TLV76701DRVR - Adjustable- and fixed-output, 1-A, 16-V, positive-voltage low-dropout (LDO) linear regulator | DRV | 6 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | TLV76701DRVR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the TLV76701DRVR - Adjustable- and fixed-output, 1-A, 16-V, positive-voltage low-dropout (LDO) linear regulator | DRV | 6 | -40 to 125 from Texas Instruments. |
| Package / case | WSON (DRV) |
| Product category | Voltage regulators |
| Pins | 6 |
| TI package code | DRV |
| Output Type | 可调式 |
| Voltage - Input (Max) | 16V |
| Voltage - Output | 0.8V |
| Current - Output | 1A |
| Rating | Catalog |
| Vin (max) (V) | 16 |
| Vin (min) (V) | 2.5 |
| Iout (max) (A) | 1 |
| Output options | Adjustable Output, Fixed Output |
| Vout (max) (V) | 14.5 |
| Vout (min) (V) | 0.8 |
| Fixed output options (V) | 0.8, 1.8, 2.5, 2.8, 3.3, 5, 8, 14.5 |
| Noise (µVrms) | 60 |
| PSRR at 100 KHz (dB) | 53 |
| Iq (typ) (mA) | 0.05 |
| Features | Enable, Foldback Overcurrent protection, Output discharge |
| Thermal resistance θJA (°C/W) | 60.1, 78, 165.7 |
| Load capacitance (min) (µF) | 1 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 1 |
| Dropout voltage (Vdo) (typ) (mV) | 900 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 3,000 | LARGE T&R |
| In stock | 5,620 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
TI exact ordering page and explicitly identified base product page verified on 2026-11-04. Electrical fields refer to the named base product. Package and temperature refer to the exact ordering code. Package reference image is not a stock-lot photograph. Consult the datasheet for electrical limits and test conditions.
