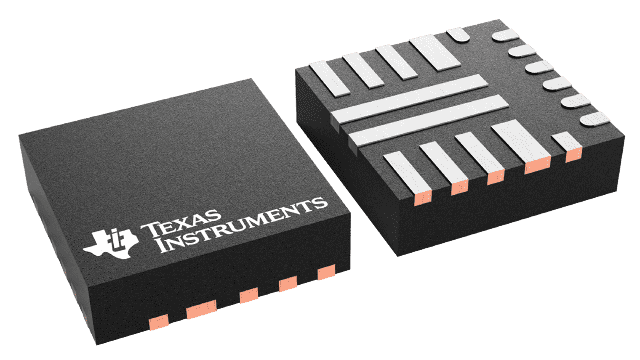

Manufacturer package reference image
3.8-V to 17-V, 12-A synchronous buck converter with D-CAP3 control
Key Specifications
| Complete manufacturer part number | TPS56C231RNNR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | 3.8-V to 17-V, 12-A synchronous buck converter with D-CAP3 control |
| Package / case | VQFN-HR (RNN) |
| Product category | Switching voltage regulators |
| Pins | 18 |
| Base product | TPS56C231 |
| Operating temperature (manufacturer ordering record) | -40 °C to 125 °C |
| In stock | 4,751 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
The description is the manufacturer overview associated with this complete ordering code. Model-specific fields cite the ordering record or documentation. Confirm electrical test conditions, physical dimensions and certification scope in the linked original documents.
Manufacturer package reference image for VQFN-HR (RNN). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
