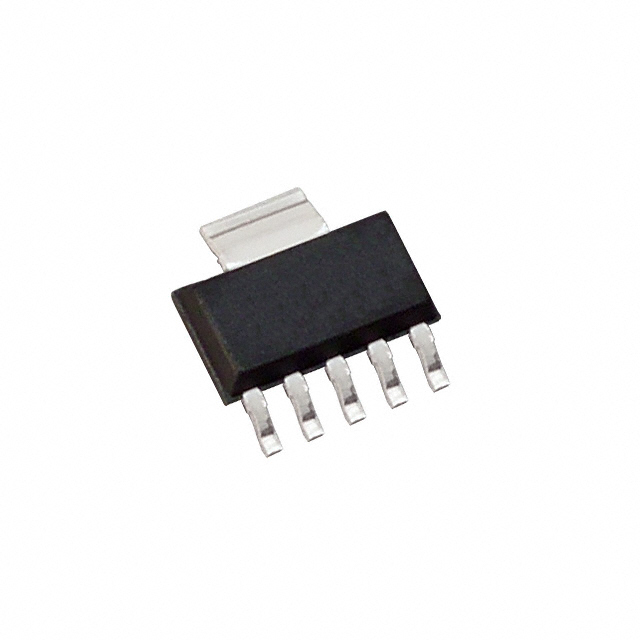

Listing photo. Request current-lot confirmation.
Order the TPS73801DCQR - 1-A, 20-V, adjustable low-dropout voltage regulator with reverse current and voltage protection | DCQ | 6 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | TPS73801DCQR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the TPS73801DCQR - 1-A, 20-V, adjustable low-dropout voltage regulator with reverse current and voltage protection | DCQ | 6 | -40 to 125 from Texas Instruments. |
| Package / case | SOT-223 (DCQ) |
| Product category | Voltage regulators |
| Series / Family | TPS73801 |
| Power supply | 2.2 V to 20 V (adjustable output 1.21 V to 20 V) |
| Pins | 6 |
| TI package code | DCQ |
| Mounting Type | Surface Mount |
| Rating | Catalog |
| Vin (max) (V) | 20 |
| Vin (min) (V) | 2.2 |
| Iout (max) (A) | 1 |
| Output options | Adjustable Output |
| Vout (max) (V) | 20 |
| Vout (min) (V) | 1.2 |
| Noise (µVrms) | 45 |
| PSRR at 100 KHz (dB) | 45 |
| Iq (typ) (mA) | 1 |
| Features | Enable, Reverse Current Protection, Reverse voltage protection |
| Thermal resistance θJA (°C/W) | 51 |
| Load capacitance (min) (µF) | 10 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 3 |
| Dropout voltage (Vdo) (typ) (mV) | 300 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 2,500 | LARGE T&R |
| In stock | 1,066 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
TI exact ordering page and explicitly identified base product page verified on 2026-11-04. Electrical fields refer to the named base product. Package and temperature refer to the exact ordering code. Package reference image is not a stock-lot photograph. Consult the datasheet for electrical limits and test conditions.
Request a Quote
Part of the TI LDO series.
