Manufacturer package reference image
Order the TPS74801DRCT - 1.5-A low-VIN (0.8 V) adjustable low-dropout (LDO) voltage regulator with power good and enable | DRC | 10 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | TPS74801DRCT |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the TPS74801DRCT - 1.5-A low-VIN (0.8 V) adjustable low-dropout (LDO) voltage regulator with power good and enable | DRC | 10 | -40 to 125 from Texas Instruments. |
| Package / case | VSON (DRC) |
| Product category | Voltage regulators |
| Series / Family | TPS74801 |
| Power supply | Up to 15 V |
| Pins | 10 |
| TI package code | DRC |
| Mounting Type | Surface Mount |
| Type | LDO regulator |
| Output Current | 1.5 A |
| Output Voltage | Adjustable 0.8-3.6 V |
| Rating | Catalog |
| Vin (max) (V) | 5.5 |
| Vin (min) (V) | 0.8 |
| Iout (max) (A) | 1.5 |
| Output options | Adjustable Output |
| Vout (max) (V) | 3.6 |
| Vout (min) (V) | 0.8 |
| Noise (µVrms) | 20 |
| PSRR at 100 KHz (dB) | 28 |
| Iq (typ) (mA) | 1 |
| Features | Enable, Power good, Soft start |
| Thermal resistance θJA (°C/W) | 36 |
| Load capacitance (min) (µF) | 2.2 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 2 |
| Dropout voltage (Vdo) (typ) (mV) | 60 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 250 | SMALL T&R |
| In stock | 8,238 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
TI exact ordering page and explicitly identified base product page verified on 2026-11-04. Electrical fields refer to the named base product. Package and temperature refer to the exact ordering code. Package reference image is not a stock-lot photograph. Consult the datasheet for electrical limits and test conditions.

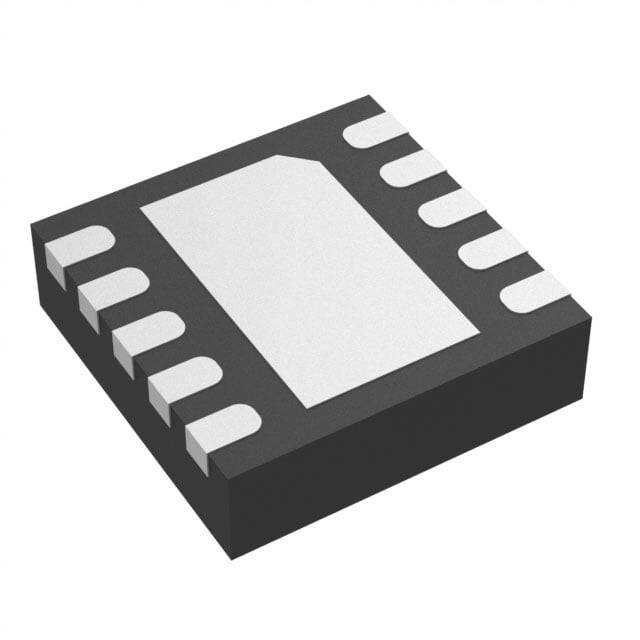

Manufacturer package reference image for VSON (DRC). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Request a Quote
Part of the TI LDO series.
