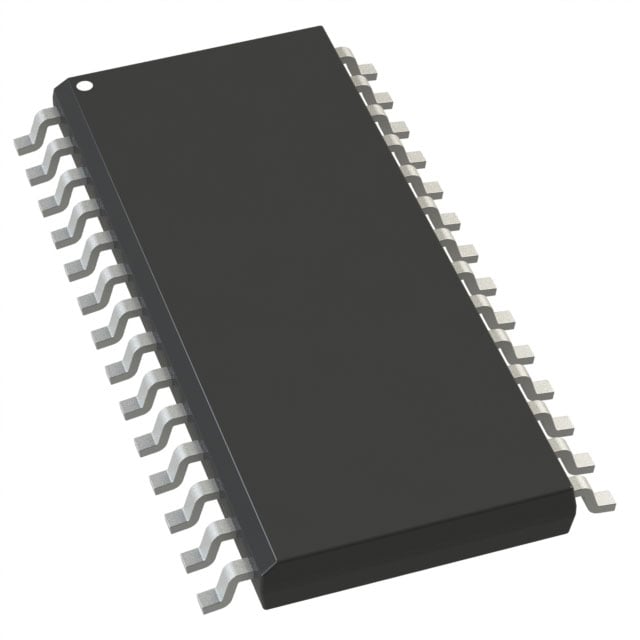

Listing photo. Request current-lot confirmation.
Order the TPS767D301PWP - 1-A, 10-V, dual-channel low-dropout voltage regulator with power good & enable | PWP | 28 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | TPS767D301PWP |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the TPS767D301PWP - 1-A, 10-V, dual-channel low-dropout voltage regulator with power good & enable | PWP | 28 | -40 to 125 from Texas Instruments. |
| Package / case | HTSSOP (PWP) |
| Product category | Voltage regulators |
| Pins | 28 |
| Rating | Catalog |
| Vin (max) (V) | 10 |
| Vin (min) (V) | 2.7 |
| Iout (max) (A) | 1 |
| Output options | Adjustable Output, Dual output, Fixed Output |
| Vout (max) (V) | 5.5 |
| Vout (min) (V) | 1.5 |
| Fixed output options (V) | 1.8, 2.5, 3.3 |
| Noise (µVrms) | 55 |
| PSRR at 100 KHz (dB) | 30 |
| Iq (typ) (mA) | 0.08 |
| Features | Enable, Power good |
| Thermal resistance θJA (°C/W) | 28 |
| Load capacitance (min) (µF) | 10 |
| Regulated outputs (#) | 2 |
| Accuracy (%) | 2 |
| Dropout voltage (Vdo) (typ) (mV) | 350 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 50 | TUBE |
| In stock | 12,314 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
