Manufacturer package reference image
Order the TPS76933DBVR - 100-mA, 10-V, low-IQ, low-dropout voltage regulator with enable | DBV | 5 | -40 to 125 from Texas Instruments.
Key Specifications
| Complete manufacturer part number | TPS76933DBVR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | Order the TPS76933DBVR - 100-mA, 10-V, low-IQ, low-dropout voltage regulator with enable | DBV | 5 | -40 to 125 from Texas Instruments. |
| Package / case | SOT-23 (DBV) |
| Product category | Voltage regulators |
| Series / Family | TPS76933 |
| Power supply | Up to 10 V |
| Pins | 5 |
| TI package code | DBV |
| Mounting Type | Surface Mount |
| Type | LDO / linear regulator |
| Output Current | 100 mA |
| Output Voltage | Fixed 3.3 V |
| Input | Up to 10 V |
| Rating | Catalog |
| Vin (max) (V) | 10 |
| Vin (min) (V) | 2.7 |
| Iout (max) (A) | 0.1 |
| Output options | Adjustable Output, Fixed Output |
| Vout (max) (V) | 5.5 |
| Vout (min) (V) | 1.2 |
| Fixed output options (V) | 1.2, 1.5, 1.8, 2.5, 2.7, 2.8, 3, 3.3, 5, 5.5 |
| Noise (µVrms) | 190 |
| PSRR at 100 KHz (dB) | 27 |
| Iq (typ) (mA) | 0.017 |
| Features | Enable |
| Thermal resistance θJA (°C/W) | 180 |
| Load capacitance (min) (µF) | 4.7 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 3 |
| Dropout voltage (Vdo) (typ) (mV) | 71 |
| Operating temperature (exact ordering record) | -40 to 125 °C |
| Standard quantity / packing | 3,000 | LARGE T&R |
| In stock | 10,529 pcs |
| Unit price | Request a quote |
| Lead time | To be confirmed |
Technical documentation and image source
TI exact ordering page and explicitly identified base product page verified on 2026-11-04. Electrical fields refer to the named base product. Package and temperature refer to the exact ordering code. Package reference image is not a stock-lot photograph. Consult the datasheet for electrical limits and test conditions.

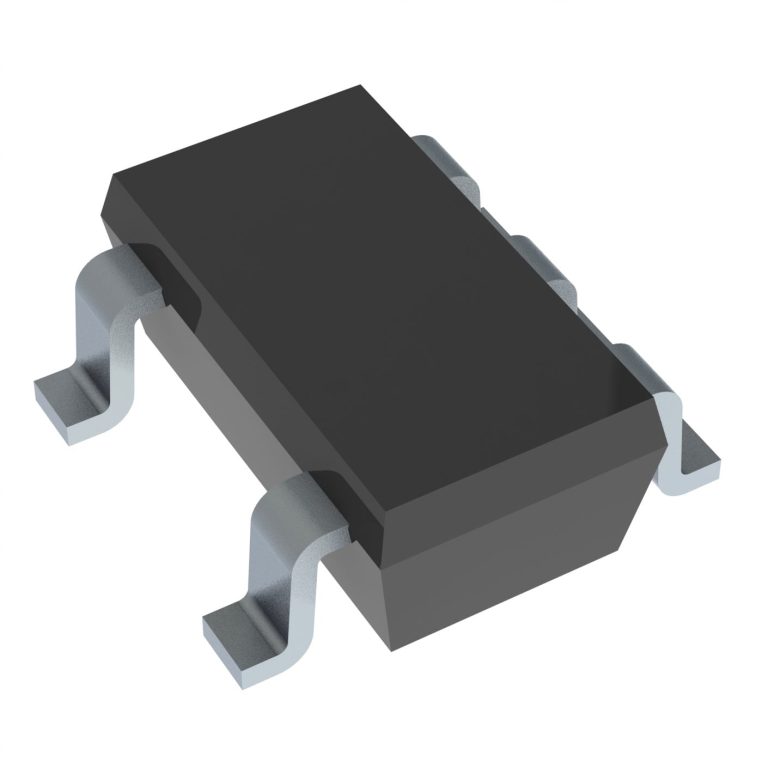

Manufacturer package reference image for SOT-23 (DBV). Confirm electrical pin functions in the datasheet. Actual lot appearance and top marking require current-lot confirmation.
Request a Quote
Part of the TI LDO series.
